1. No sunlight for photosynthesis.
2. They are not adapted for high
pressure.
3. They may not be adapted for
extreme of deeper water.
4. Hydrogen sulfides are toxic to
most plants/algae..
DProductivity is the production of
new biomass.
It is often stated as a mass produced per
unit area (or volume) per unit of time. For
example:
gC/m2
/year
(grams of carbon produced per m2
per year)
Both are using an energy
source (the sun or the chemical
energy within vent minerals) to
trigger chemical reactions that
result in the production of
sugars. Those sugars can be
passed up the trophic levels..
The position(s) that an organisms
occupies in it’s food chain. A
producer is always TL 1 and then it
increase with each feeder.
Both are using an energy
source (the sun or the chemical
energy within vent minerals) to
trigger chemical reactions that
result in the production of
sugars. Those sugars can be
passed up the trophic levels.

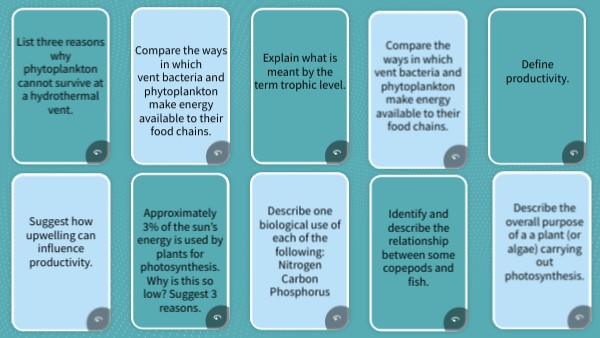

List three reasons why
phytoplankton cannot survive
at a hydrothermal vent.
Compare the ways in which
vent bacteria and
phytoplankton make energy
available to their food chains.
Compare the ways in which
vent bacteria and
phytoplankton make energy
available to their food chains.
Explain what is meant by the
term trophic level.
Define productivity.
Upwelling delivers nutrient rich
water to the surface. The
excess of nutrients will allow
phytoplankton populations to
increase (as they are no longer
nutrient limited).
Some copepods (some called
sea lice) have a parasitic
relationship, in which they
attach to the fish and feed on
their tissue and blood. This
harms the fish.
1. Some is reflected back to space.
2. Some is absorbed or blocked by
water or sediment in water.
3. Some does not hit the
chloroplast/chlorophyll of a plant.
4. Some wavelengths/colors of light
are unsuitable for
photosynthesis.
Describe the overall purpose
of a a plant (or algae) carrying
out photosynthesis.
Nitrogen - make proteins / amino
acids / DNA
Carbon - make organic molecules
(glucose, carbohydrates, etc)
Phosphorus - make DNA / bones
Describe one biological use of
each of the following:
Nitrogen
Carbon
Phosphorus
Approximately 3% of the sun’s
energy is used by plants for
photosynthesis. Why is this so
low? Suggest 3 reasons.
To produce sugars that can
later be broken down to release
energy.
Identify and describe the
relationship between some
copepods and fish.
Suggest how upwelling can
influence productivity.
This is an example of
commensalism in which one
species benefits (the barnacles
gain transport, possibly even to
areas rich in plankton for feeding)
and the whale is unaffected.
This is an example of mutualism.
The boxer crab uses the
anemones for defense, while the
anemones benefit from
transportation, access to food
particles, and protection.
Chemosynthesis
Symbiotic bacteria (that live in the
tissues of giant tube worms) use the
chemical energy in hydrogen
sulfides (that come out of the vents)
to produce sugars that can be
passed up the food chain.
State and describe the
process used by organisms at
hydrothermal vents to provide
energy to support a food
chain there.
The major primary producer in
the oceans, especially the open
ocean, is:
Primary consumer is the krill (the
first consumer).
Tertiary consumer that is trophic
level 4, eating the penguin.
Ex: killer whale or a leopard seal
Phytoplankton
Algae → krill → penguin Which is the primary consumer?Suggest a tertiary consumer.
Identify and describe the
relationship between boxer
crabs and anemones.
Identify and describe the
relationship between some
whales and barnacles.
Aside from the chemical
compounds that are part of
the equation, what else is
needed for photosynthesis to
occur?
While some of the glucose
produced by photosynthesis is
used to produce energy, some
of it is used to produce
__________.
Complete the equation and
identify the process:
Water + ___________ →
____________ + oxygen
Complete the equation and
identify the process:
Glucose + ___________ →
___________ + carbon dioxide
Approximate 90% is lost and
10% is transferred to the next
level.
Photosynthesis
Water + carbon dioxide →
glucose + oxygen
Respiration
Glucose + oxygen →
water + carbon dioxide
Sunlight
Chlorophyll
Approximately how much
energy is lost from one trophic
level to the next?
biomass
A substance that provides
nourishment essential for life.
This includes cell growth and
repair, metabolic processes,
energy production, etc.
Respiration - energy produced
is used for movement,
temperature regulation, any other
metabolic processes
incomplete digestion
waste production
Identify the pyramid type.
(energy / biomass / numbers)
This is a pyramid of numbers.
(part/whole) x 100 = %
(17.5/180)x100 = 9.7%
Identify the pyramid type.
(energy / biomass / numbers)
Algae → krill → penguin
(180 a.u.) (17.5 a.u.) (6.9 a.u.)
How would you calculate the energy
efficiency rate between the algae
and the krill?
This is a pyramid of biomass.
Suggest three ways that
energy is lost between trophic
level 2 and trophic level 3.
Define nutrient.
When you have a higher value for a
parasite, it would not be biomass (they
are usually tiny) or energy (energy can
be gained at a higher trophic level).
However, you could have 1500 sea
lice on a population of just 50 fish.
Phytoplankton reproduce rapidly, and
have short lifespans. They are
constantly being replenished and their
biomass at any given moment may be
lower than the biomass of organisms
that feed on them.
phosphate ion magnesium ion
carbonate ion nitrite ion
They are ions because they have a - or
+ charge. (They are not balanced
because they have either given or
received an electron).
Identify these nutrients:
PO4
3- Mg2+
CO3
2- NO3
-
How can you tell they are ions?
Identify the three major organic
compounds in living things that
contain carbon.
What elements are each mostly
composed of?
Glucose molecules
Glucose is the monomer and the starch
and cellulose are the larger
macromolecules, or polymers.
Carbohydrates
(made of C, H, and O)
Lipids
(made of C, H, and O)
Proteins
(made of C, H, O, N, and S)
Starch and cellulose are made
from______________.
Respiration
Decomposition
Amino acids.The protein is the polymer.
The amino acids are the monomers.
State two biological process
that release carbon dioxide.
___________ make proteins.
The protein is the
monomer or polymer?
Fossil fuels are a long term storage of
carbon, or sink, when organic
material sinks to the seafloor and get
compacted.
Fossil fuels are a source of carbon to
the atmosphere when humans extract
them from the seafloor and burn.
1. Water temperature
2. Concentration of atmospheric
CO2
3. The amount of mixing
occurring at the surface (wave
action)
More phytoplankton growth due to:
Increased sunlight hours and intensity
Increased water temps
Less mixing of surface waters (that
can push plankton too deep)
Phytoplankton densities are
often estimates by satellite
imaging of chlorophyll in the
water. Explain why these
satellites show that chlorophyll
levels increase in the spring.
Calcium is used to build bones,
shells, and coral skeletons. The
carapace of crustaceans also
contains calcium.
Magnesium is used to make
chlorophyll.
Suggest three factors that
influence how much CO2
can
dissolve into surface waters.
Describe one biological use of
each of the following:
Calcium
Magnesium
Lipids are made up of fatty
acids and ___________.
Describe the role of fossil fuels
as a sink and source in the
carbon cycle.
Glycerol
If the gross primary productivity
of a system is 100 gC/m2
/yr,
and the energy used by plants
for respiration is 79 gC/m2
/yr,
then what is the NPP?
Excess nutrients can lead to
phytoplankton blooms. Some of
these species could be toxic or
enhanced phytoplankton growth
could block sunlight reaching
below to species like corals or
seagrasses.
1. Decomposition of marine
organisms
2. Waste / excretion by animals
3. Upwelling of deep water
4. Runoff from rivers
5. Tectonic activity / volcanic ash
6. Gas exchange with atmosphere
Phytoplankton: Uptake from
the surrounding water
Squid: It is transferred from
the prey that is eats.
Reduced light intensityReduced nutrient availability
Reduced CO2 availability
Suggest five sources of
nutrients to surface waters of
the ocean.
NPP =
Gross PP minus energy used
by trophic level 1
NPP = 21 gC/m2
/yr
Suggest three ways that kelp
productivity could be limited.
How does a phytoplankton
obtain nitrogen?
How does a squid obtain
nitrogen?
In what way might increased
nutrients in surface water
become harmful?
AICE Unit 3 Interactions
Chris Ann Thomas
Created on March 9, 2026
Start designing with a free template
Discover more than 1500 professional designs like these:
View
Essential Map
View
Akihabara Map
View
Discover Your AI Assistant
View
Match the Verbs in Spanish: Present and Past
View
Syllabus Organizer for Higher Education
View
Hand-Drawn Infographic
View
Visual Thinking Infographic
Explore all templates
Transcript
1. No sunlight for photosynthesis. 2. They are not adapted for high pressure. 3. They may not be adapted for extreme of deeper water. 4. Hydrogen sulfides are toxic to most plants/algae..
DProductivity is the production of new biomass. It is often stated as a mass produced per unit area (or volume) per unit of time. For example: gC/m2 /year (grams of carbon produced per m2 per year)
Both are using an energy source (the sun or the chemical energy within vent minerals) to trigger chemical reactions that result in the production of sugars. Those sugars can be passed up the trophic levels..
The position(s) that an organisms occupies in it’s food chain. A producer is always TL 1 and then it increase with each feeder.
Both are using an energy source (the sun or the chemical energy within vent minerals) to trigger chemical reactions that result in the production of sugars. Those sugars can be passed up the trophic levels.
List three reasons why phytoplankton cannot survive at a hydrothermal vent.
Compare the ways in which vent bacteria and phytoplankton make energy available to their food chains.
Compare the ways in which vent bacteria and phytoplankton make energy available to their food chains.
Explain what is meant by the term trophic level.
Define productivity.
Upwelling delivers nutrient rich water to the surface. The excess of nutrients will allow phytoplankton populations to increase (as they are no longer nutrient limited).
Some copepods (some called sea lice) have a parasitic relationship, in which they attach to the fish and feed on their tissue and blood. This harms the fish.
1. Some is reflected back to space. 2. Some is absorbed or blocked by water or sediment in water. 3. Some does not hit the chloroplast/chlorophyll of a plant. 4. Some wavelengths/colors of light are unsuitable for photosynthesis.
Describe the overall purpose of a a plant (or algae) carrying out photosynthesis.
Nitrogen - make proteins / amino acids / DNA Carbon - make organic molecules (glucose, carbohydrates, etc) Phosphorus - make DNA / bones
Describe one biological use of each of the following: Nitrogen Carbon Phosphorus
Approximately 3% of the sun’s energy is used by plants for photosynthesis. Why is this so low? Suggest 3 reasons.
To produce sugars that can later be broken down to release energy.
Identify and describe the relationship between some copepods and fish.
Suggest how upwelling can influence productivity.
This is an example of commensalism in which one species benefits (the barnacles gain transport, possibly even to areas rich in plankton for feeding) and the whale is unaffected.
This is an example of mutualism. The boxer crab uses the anemones for defense, while the anemones benefit from transportation, access to food particles, and protection.
Chemosynthesis Symbiotic bacteria (that live in the tissues of giant tube worms) use the chemical energy in hydrogen sulfides (that come out of the vents) to produce sugars that can be passed up the food chain.
State and describe the process used by organisms at hydrothermal vents to provide energy to support a food chain there.
The major primary producer in the oceans, especially the open ocean, is:
Primary consumer is the krill (the first consumer). Tertiary consumer that is trophic level 4, eating the penguin. Ex: killer whale or a leopard seal
Phytoplankton
Algae → krill → penguin Which is the primary consumer?Suggest a tertiary consumer.
Identify and describe the relationship between boxer crabs and anemones.
Identify and describe the relationship between some whales and barnacles.
Aside from the chemical compounds that are part of the equation, what else is needed for photosynthesis to occur?
While some of the glucose produced by photosynthesis is used to produce energy, some of it is used to produce __________.
Complete the equation and identify the process: Water + ___________ → ____________ + oxygen
Complete the equation and identify the process: Glucose + ___________ → ___________ + carbon dioxide
Approximate 90% is lost and 10% is transferred to the next level.
Photosynthesis Water + carbon dioxide → glucose + oxygen
Respiration Glucose + oxygen → water + carbon dioxide
Sunlight Chlorophyll
Approximately how much energy is lost from one trophic level to the next?
biomass
A substance that provides nourishment essential for life. This includes cell growth and repair, metabolic processes, energy production, etc.
Respiration - energy produced is used for movement, temperature regulation, any other metabolic processes incomplete digestion waste production
Identify the pyramid type. (energy / biomass / numbers)
This is a pyramid of numbers.
(part/whole) x 100 = % (17.5/180)x100 = 9.7%
Identify the pyramid type. (energy / biomass / numbers)
Algae → krill → penguin (180 a.u.) (17.5 a.u.) (6.9 a.u.) How would you calculate the energy efficiency rate between the algae and the krill?
This is a pyramid of biomass.
Suggest three ways that energy is lost between trophic level 2 and trophic level 3.
Define nutrient.
When you have a higher value for a parasite, it would not be biomass (they are usually tiny) or energy (energy can be gained at a higher trophic level). However, you could have 1500 sea lice on a population of just 50 fish.
Phytoplankton reproduce rapidly, and have short lifespans. They are constantly being replenished and their biomass at any given moment may be lower than the biomass of organisms that feed on them.
phosphate ion magnesium ion carbonate ion nitrite ion They are ions because they have a - or + charge. (They are not balanced because they have either given or received an electron).
Identify these nutrients: PO4 3- Mg2+ CO3 2- NO3 - How can you tell they are ions?
Identify the three major organic compounds in living things that contain carbon. What elements are each mostly composed of?
Glucose molecules Glucose is the monomer and the starch and cellulose are the larger macromolecules, or polymers.
Carbohydrates (made of C, H, and O) Lipids (made of C, H, and O) Proteins (made of C, H, O, N, and S)
Starch and cellulose are made from______________.
Respiration Decomposition
Amino acids.The protein is the polymer. The amino acids are the monomers.
State two biological process that release carbon dioxide.
___________ make proteins. The protein is the monomer or polymer?
Fossil fuels are a long term storage of carbon, or sink, when organic material sinks to the seafloor and get compacted. Fossil fuels are a source of carbon to the atmosphere when humans extract them from the seafloor and burn.
1. Water temperature 2. Concentration of atmospheric CO2 3. The amount of mixing occurring at the surface (wave action)
More phytoplankton growth due to: Increased sunlight hours and intensity Increased water temps Less mixing of surface waters (that can push plankton too deep)
Phytoplankton densities are often estimates by satellite imaging of chlorophyll in the water. Explain why these satellites show that chlorophyll levels increase in the spring.
Calcium is used to build bones, shells, and coral skeletons. The carapace of crustaceans also contains calcium. Magnesium is used to make chlorophyll.
Suggest three factors that influence how much CO2 can dissolve into surface waters.
Describe one biological use of each of the following: Calcium Magnesium
Lipids are made up of fatty acids and ___________.
Describe the role of fossil fuels as a sink and source in the carbon cycle.
Glycerol
If the gross primary productivity of a system is 100 gC/m2 /yr, and the energy used by plants for respiration is 79 gC/m2 /yr, then what is the NPP?
Excess nutrients can lead to phytoplankton blooms. Some of these species could be toxic or enhanced phytoplankton growth could block sunlight reaching below to species like corals or seagrasses.
1. Decomposition of marine organisms 2. Waste / excretion by animals 3. Upwelling of deep water 4. Runoff from rivers 5. Tectonic activity / volcanic ash 6. Gas exchange with atmosphere
Phytoplankton: Uptake from the surrounding water Squid: It is transferred from the prey that is eats.
Reduced light intensityReduced nutrient availability Reduced CO2 availability
Suggest five sources of nutrients to surface waters of the ocean.
NPP = Gross PP minus energy used by trophic level 1 NPP = 21 gC/m2 /yr
Suggest three ways that kelp productivity could be limited.
How does a phytoplankton obtain nitrogen? How does a squid obtain nitrogen?
In what way might increased nutrients in surface water become harmful?
