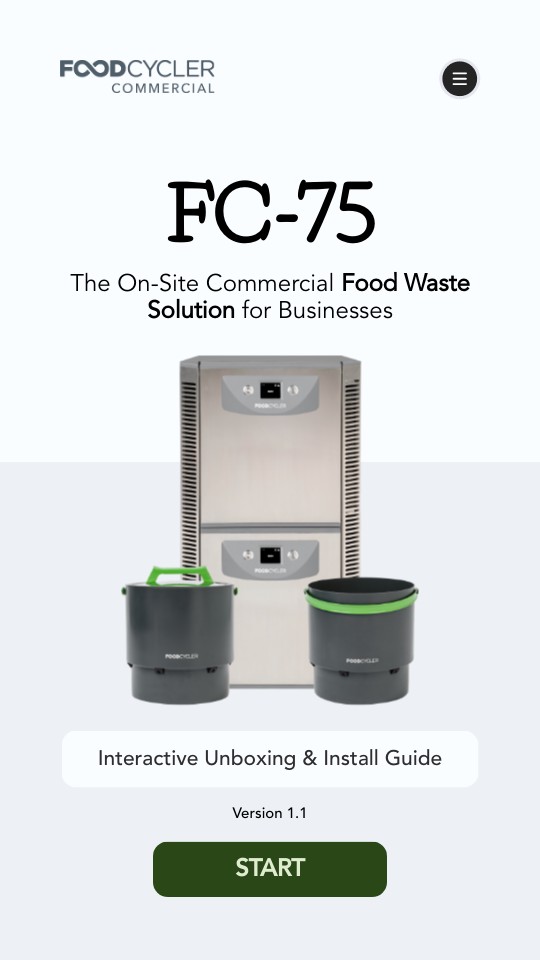

FC-75

The On-Site Commercial Food Waste Solution for Businesses

Interactive Unboxing & Install Guide

Version 1.1

Start

Main menu

1. Unboxing

2. User Setup

3. Connect Machine

4. Running a Cycle

5. Training and Maintenance

Next
foodcycler.com/commercial

1. Unboxing

a. Safety Notice:

  • This unit is heavy and should be unboxed by two people. Do not attempt to lift or remove the unit alone. Having a second person helps prevent injury and accidental damage.

What you will need:

  • 1 × Standard or Power Screwdriver
  • 1x Scissors
Next
foodcycler.com/commercial

1. Unboxing

b. Remove all 12 screws.

Remove the screws indicated by the red arrows

Next

Next

foodcycler.com/commercial

1. Unboxing

c. Remove the top part

Save the top part, as it will be used as a ramp.

Next
foodcycler.com/commercial

1. Unboxing

d. Cut the banding strap and remove protective wrapping (plastic wrap, cardboard, and foam)

Next
foodcycler.com/commercial

1. Unboxing

e. Prepare to roll machine off base

  1. Position the protective ramp facing the front of the unit (drawer side).
  2. Lift the metal grills and remove them.
  3. Pull out the handles and rotate them clockwise to lock them into position.
  4. Using the handles, lift the unit and remove all four protective foam blocks.
Next
foodcycler.com/commercial

1. Unboxing

f. Use ramp, roll off and into place

Next
foodcycler.com/commercial

1. Unboxing

g. Place water hose into drain or sink

The water hose is located behind the unit, at the bottom-left corner.

Next
foodcycler.com/commercial

2. User Setup

a. Plug into electrical outlet

Cut the tie holding the power cord to the unit then plug into the electrical outlet.

Next
foodcycler.com/commercial

2. User Setup

b. Turn power switch on (power on)

The machine’s power switch is located on the top right corner at the back of the machine.

Next
foodcycler.com/commercial

2. User Setup

c. Connect to Wi-Fi and update now, or continue without updating.

Start Connecting

Do Not Connect

If you do not connect your machine, you won’t have the latest software and won’t be connected to the FoodCycler App or Dashboard.

Next
foodcycler.com/commercial

3. Connect Machine

a. What you will need:

  • 1. Wi-Fi login credentials
  • 2. FoodCycler App
  • 3. FoodCycler App login credentials (Create account via email sent from FoodCylcer)

Click one of the buttons below to download the FoodCycler App from the Apple App Store or Google Play Store.

App Store
Play Store
Next
foodcycler.com/commercial

3. Connect Machine

b. Put machine in set up mode

On initial power-up, the firmware version screen appears on both drawers for 5–10 seconds.

Press the left physical button (not the screen) on both drawers to select ‘YES’ This allows the FC-75 to check for updates automatically.

Next

Next
foodcycler.com/commercial

3. Connect Machine

c. Install and Sign In to the App

  1. After selecting YES, the screen updates to display a QR code to download the app.
  2. Bluetooth and Wi-Fi icons appear in the top-left corner. The Bluetooth icon indicates that the drawer is ready to pair with an account.

Download the FoodCycler App to continue.

Sign in to the app using the credentials you created via the email you received from FoodCycler Commercial.

For lost or missing credentials, please reach out to support at FCCsupport@foodcycler.com

Next
foodcycler.com/commercial

3. Connect Machine

d. Add device

Once logged in, open the app menu and navigate to Add New Device.

Enter the device serial number if it is not already populated, assign a device name, and select the FC-75 install location from the dropdown menu.

The device serial number is located behind the metal grille on the frame, at the top-left corner of the unit.

Next

Next

foodcycler.com/commercial

3. Connect Machine

e. Identify Drawers

Confirm each drawer ID listed in the app matches the corresponding drawer ID on the FC-75 drawer screen. Then click Continue.

Next

Next

foodcycler.com/commercial

3. Connect Machine

f. Connect to Wi-Fi and enter the network password.

Next, you’ll be prompted to connect to Wi-Fi. You can select the same network used by your mobile device or enter a network manually, then input the password.

Next

Next

foodcycler.com/commercial

3. Connect Machine

g. Connection process and software update

Once connected to the Wifi the connection process will display in the app and on the FC-75 screens. The process may take up to 10 minutes.

App display:

Unit screen display:

The update is complete, and the machine is ready to use once you have confirmed it is connected in the app and the FC-75 screen says ‘Ready.’

App display:

Unit screen display:

Next

Next

foodcycler.com/commercial

3. Connect Machine

h. Completed set up

If the machine has been connected successfully, the screen will say ‘Ready,’ and there will be a ‘transmit’ icon in the top-left corner of the screen.

Congratulations! Your unit is now connected and ready.

Start your first cycle

Next

Next

foodcycler.com/commercial

4. Running a Cycle

a. Add food scraps to the bucket.

Next
foodcycler.com/commercial

4. Running a Cycle

b. Insert the bucket into the drawer.

Next
foodcycler.com/commercial

4. Running a Cycle

c. Press Start

Next
foodcycler.com/commercial

4. Running a Cycle

d. In a few hours, food scraps are transformed into Foodilizer™, a dry, nutrient-rich by-product reduced by up to 90% in volume.

Next
foodcycler.com/commercial

5. Training and Maintenance

a. Remove / insert / load bucket

  • Do not fill past the indicated line.
Next
foodcycler.com/commercial

5. Training and Maintenance

b. Start a cycle

  • Do not add or open while the cycle is running.
Next
foodcycler.com/commercial

5. Training and Maintenance

c. Emptying the bucket

If the by-product is stuck, reinsert the bucket and turn on the FC-75. The grinding will help dislodge it for collection.

Next
foodcycler.com/commercial

5. Training and Maintenance

d. Clean Drawer Lid Filter

Next
foodcycler.com/commercial

5. Training and Maintenance

e. Change carbon filter

Carbon filter is located on the top-right side of the unit.

Next
foodcycler.com/commercial

5. Training and Maintenance

f. Clean fan filter

Next
foodcycler.com/commercial

5. Training and Maintenance

g. What goes into the bucket

Next
foodcycler.com/commercial

5. Training and Maintenance

h. How to clean bucket

Next
foodcycler.com/commercial

5. Training and Maintenance

i. How to clean the machine

Wipe the machine with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials.
