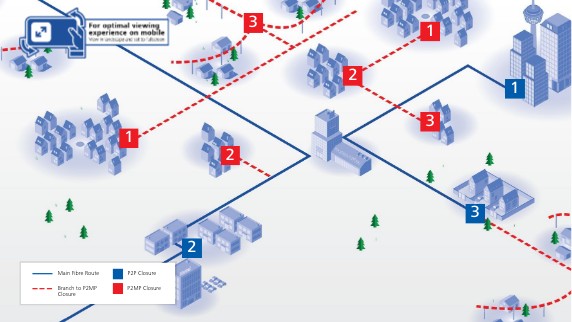

Main Fibre Route
P2P Closure
Branch to P2MP Closure
P2MP Closure
FRBU - Fibre Residential & Business Unit
Here, the FRBU services a metropolitan low-density housing estate using a P2MP network topology to share fibre across multiple properties, reducing the fibre required for acost-effective deployment.
16 round portsand 1 oval port
2x 1:8 Bare End PLC Splitters
16 LC/APC Drops
Fibre storagebasket
Read more
FDN-IR - Fibre Distribution Node
In this case, the FDN is services a metropolitanhigh-density housing estate using a P2MP network topology, to distribute fibre from a single point tomany homes, reducing the fibre required for acost-effective deployment.
58 round portsand 1 oval port
8 x 1:8 Bare EndPON Splitters
48 LC/APC Drops
Fibre storagebasket
Open in new window
CFNIRS - Central Fibre Node
In this example, the CFN connects office blocks and a hotel using a P2P network topology, delivering secure, high-performance links for businesses with high bandwidth requirements.
26 round portsand 1 oval port
Bi-directional fibrerouting
24 LC/APC Drops
Fibre storagebasket
Open in new window
CFNIRS - Central Fibre Node
Here, the CFN services a rural mid-density housingestate using a P2MP network topology to share fibre across multiple properties, reducing the fibre requiredfor a cost-effective deployment.
26 round portsand 1 oval port
3x 1:8 Bare EndPLC Splitters
24 LC/APC Drops
Fibre storagebasket
Open in new window
CFNIRS - Central Fibre Node
Here, the CFN services a metropolitan mid-density housing estate using a P2MP network topology toshare fibre across multiple properties, reducing the fibre required for a cost-effective deployment.
26 round portsand 1 oval port
3x 1:8 Bare End PLC Splitters
24 LC/APC Drops
Fibre storagebasket
Open in new window
FDN-IR - Fibre Distribution Node
In this case, the FDN is services a rural high-density housing estate using a P2MP network topology, to distribute fibre from a single point to many homes, reducing the fibre required for a cost-effective deployment.
58 round portsand 1 oval port
8 x 1:8 Bare End PON Splitters
48 LC/APC Drops
Fibre storagebasket
Open in new window
FDN-IR - Fibre Distribution Node
Here, the FDN services metropolitan outskirts using a P2P network topology, ensuring dedicated connections for high-density urban areas. Splitters may still be utilised down the line in enclosures such as the to service housing and businesses with lower bandwidth requirements.
MDU
58 round portsand 1 oval port
Bi-directional fibrerouting
48 LC/APC Drops
Fibre storagebasket
Open in new window
FRBU - Fibre Residential & Business Unit
Here, the FRBU delivers gigabit fibre to large metropolitan properties using a P2P network topology, providingdedicated bandwidth for customers who requireconsistent, high-speed connectivity.
16 round portsand 1 oval port
Positive fibremanagement
16 LC/APC Drops
Fibre storagebasket
Open in a new window
FRBU - Fibre Residential & Business Unit
Here, the FRBU services a rural low-density village using a P2MP network topology to share fibre across multiple properties via aerial fibre routes, reducing the fibrerequired for a cost-effective deployment.
16 round portsand 1 oval port
3x 1:8 Bare End PLC Splitters
16 LC/APC Drops
Fibre storagebasket
Open in new window
FRBU - Fibre Residential & Business Unit
Here, the FRBU services a rural low-density village using a P2MP network topology to share fibre across multiple properties via aerial fibre routes, reducing the fibrerequired for a cost-effective deployment.
16 round portsand 1 oval port
3x 1:8 Bare End PLC Splitters
16 LC/APC Drops
Fibre storagebasket
Open in new window
