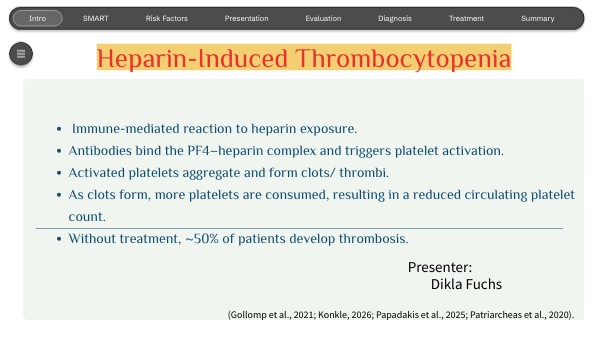

Heparin-Induced Thrombocytopenia
- Immune-mediated reaction to heparin exposure.
- Antibodies bind the PF4–heparin complex and triggers platelet activation.
- Activated platelets aggregate and form clots/ thrombi.
- As clots form, more platelets are consumed, resulting in a reduced circulating platelet count.
- Without treatment, ~50% of patients develop thrombosis.
Presenter: Dikla Fuchs
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
SMART
Objective
By session end, learners will be able to state the correct sequence for diagnosing and treating HIT by, (1), identifying HIT risk factors in patients exposed to heparin, (2), monitoring platelet levels with serial counts to determine pretest probability, (3), using the 4T score to assess likelihood of HIT, (4), selecting ELISA as the first laboratory test and (4), ordering a functional assay to confirm diagnosis, (5), recommending a switch to a non-heparin anticoagulant within 24 hours when HIT is suspected or confirmed.
Read more
HIT: Risk Factors
• Risk increases with longer heparin exposure and higher doses. • Unfractionated heparin (UFH) carries approximately ten-fold higher risk than low-molecular-weight heparin (LMWH). • Female patients are at higher risk than males. • Highest risk occurs in patients undergoing major surgery or trauma.
(Konkle, 2026)
Left Untreated
- Progressive platelet activation and thrombosis.
- Complications:
deep vein thrombosis (DVT)pulmonary embolismlimb ischemiastroke
- Mortality risk increases without timely withdrawal of heparin and initiation of non-heparin anticoagulation.
Without treatment, ~50% of patients develop thrombosis.
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
PRESENTATION | SYMPTOMS
- Platelet decline ≥50% from baseline.
- Onset typically 5–10 days after heparin exposure.
- New thrombosis:
- Deep vein thrombosis (DVT) or pulmonary embolism (PE).
- Acute limb ischemia or catheter-related thrombosis.
- Possible skin necrosis at injection sites.
- Bleeding is uncommon.
Read more
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
EVALUATION
• Platelet decline ≥50% from baseline. • Timing consistent with day 5–10 post-heparin exposure. • Presence of new thrombosis. • Apply 4T Score: 0–3: HIT unlikely → discontinue workup.4–8: HIT possible/likely → order diagnostic testing and initiate treatment.• UFH has ~10× higher risk of HIT than LMWH.
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
Diagnosis
1. Estimate probability (4T score). If 4T score ≥4:a. Discontinue all heparin exposure, including line flushes. b. initiate non-heparin anticoagulation while awaiting confirmation. 2. Order PF4 ELISA – screening test with high sensitivity. If ELISA positive:3. Order confirmatory Serotonin Release Assay (SRA).if SRA positive: confirmation of hit
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
TREATMENT
Initiate a non-heparin anticoagulant (argatroban, bivalirudin, or fondaparinux).Avoid platelet transfusion unless life-threatening bleeding occurs.Delay warfarin initiation until platelet count > 150,000/µL; overlap with direct thrombin inhibitor when starting.Document HIT clearly in medical record; avoid future heparin exposure.
Read more
Read more
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
4T Score: HIT Probability Tool
Estimate likelihood of HIT before ordering labs or initiating treatment.
1) Thrombocytopenia 2 = Platelet fall ≥50% and nadir ≥20K 1 = Platelet fall 30–50% or nadir 10–19K 0 = Platelet fall <30% or nadir <10K 2) Timing 2 = Day 5–10 after heparin start, or ≤1 day with recent heparin exposure 1 = Timing unclear or >10 days 0 = Platelet fall ≤4 days with no recent heparin
3) Thrombosis 2 = New thrombosis, skin necrosis, acute systemic reaction to IV heparin 1 = Suspected or progressive thrombosis 0 = No thrombosis 4) oTher Causes 2 = No other cause identified 1 = Possible other cause 0 = Definite other cause
HIT Score Interpretationscore. Likelihood Action 0–3. Low Do not test. Do not treat. 4–5 Intermediate Test + start non-heparin anticoagulant 6–8. High Treat as HIT while confirming.**
Read more
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
PF4 / Heparin Antibody ELISA
• Diagnostic laboratory test for patients with 4T ≥ 4. • Detects IgG antibodies against the PF4–heparin complex.
High sensitivity (~98–100%): Low specificity (~30–40%):
A negative ELISA rules out HIT.
A positive ELISA does NOT confirm HIT Follow with a functional assay.
Note: Some patients develop antibodies without platelet activation: producing false positives.
Optical Density (OD) Result Guide<0.6 HIT unlikely: r/o HIT1.0–2.0 Indeterminate: order functional test>2.0 Strong HIT likelihood: order functional test (SRA)
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
functional assay: Serotonin Release Assay
Function:- Confirms HIT
- Measures platelet activation in presence of heparin antibodies
Mechanism: - Donor platelets are exposed to patient serum + heparin
- Serotonin release indicates antibody-mediated platelet activation.
When to Order - When OD 1.0–2.0 (equivocal).
- clinical or diagnostic uncertainty
High specificity Positive SRA = confirm HIT Negative SRA = Rule out HIT
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
Summary: Stepwise Approach to HIT
- Stop all heparin.
- Estimate probability (4T score).
- Order PF4 ELISA if 4T ≥4.
- Confirm with SRA.
- Start non-heparin anticoagulant.
(Gollomp et al., 2021; Konkle, 2026; Papadakis et al., 2025; Patriarcheas et al., 2020).
Referance
- Gollomp, K., Rauova, L., & Poncz, M. (2021). Heparin-induced thrombocytopenia. In Kaushansky, K., Prchal, J. T., Burns, L. J., Lichtman, M. A., Levi, M., & Linch, D. C. (Eds.), Williams Hematology (10th ed.). McGraw-Hill Education.
- Konkle, B. A. (2026). Disorders of platelets and vessel wall. In Longo, D., Fauci, A., Kasper, D., Hauser, S., Jameson, J., Loscalzo, J., Holland, S., & Langford, C. (Eds.), Harrison’s Principles of Internal Medicine (22nd ed.). McGraw Hill.
- Papadakis, M. A., Rabow, M. W., & McQuaid, K. R. (Eds.). (2025). Thrombocytopenia, heparin-induced (HIT). In Quick Medical Diagnosis & Treatment 2025. McGraw Hill.
- Patriarcheas, V., Pikoulas, A., Kostis, M., Charpidou, A., & Dimakakos, E. (2020). Heparin-induced thrombocytopenia: Pathophysiology, diagnosis and management. Cureus, 12(3), e7385. https://doi.org/10.7759/cureus.7385
