Module 5 Sem 2 System Hardening activity

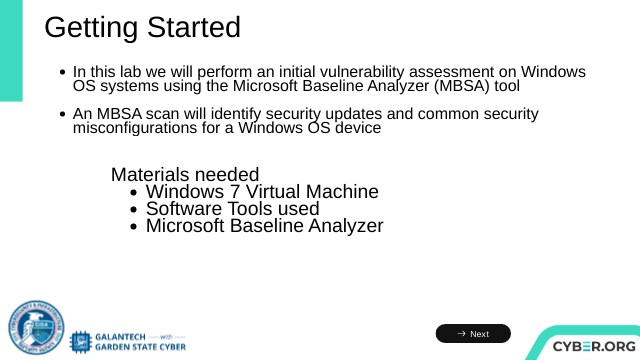

Getting Started

• In this lab we will perform an initial vulnerability assessment on Windows OS systems using the Microsoft Baseline Analyzer (MBSA) tool

• An MBSA scan will identify security updates and common security misconfigurations for a Windows OS device

Materials needed

• Windows 7 Virtual Machine
• Software Tools used
• Microsoft Baseline Analyzer

Next

Logging In

• Using a computer, go to https://apps.cyber.org
• Log in with the username and password provided by your teacher via Canvas email.
• The Username and Password is auto generated and does not contain any personal information.

Back

Next

Setup Environment

• Log into your range
• Open the Windows 7 Environment
• You should be on your Windows 7 Desktop

Back

Next

Launch MBSA

• Click “Start | All Programs | Microsoft Baseline Analyzer 2.2”
• Select Yes on the UAC window that appears
• On the main page, select Scan a Computer

Running the Scan

• For Which computer do you want to scan?, accept the defaults
• Under Options, check ONLY the top 2 boxes
• Click Start Scan
• This may take 2 – 3 minutes

Back

Next

Viewing the Results

• The scan will deliver results sorted with the highest risk items at the top
• Each reported item has an icon that indicates the level of risk

Back

Next

Mitigating Identified Vulnerabilities

• Click the X in the upper right to close MBSA Vulnerability Scan
• Turn on Automatic Updates
• Type “updates” in the Search field under the Start button
• Select Windows Updates
• Click Turn On Automatic Updates
• You will get a notification “Windows could not search for new updates.” This is because Windows 7 is out of support but the setting for Automatic Updates is now correct
• Close the update window

Back

Next

Mitigating Identified Vulnerabilities

• Correct User-base vulnerabilities
• Type “Computer” in the Search field under the Start button
• Select Computer Management
• In the left column click to select Local Users and Groups
• In the right column double-click on the Users folder
• Secure Guest Account
• Right-click on the Guest account
• Select Properties
• Click to check Account is Disabled
• Click OK

Back

Next

Mitigating Identified Vulnerabilities

• Correct User-base vulnerabilities
• Secure Guest Account
• Right-click on the windows account
• Select Set Password
• Click Proceed
• Enter P@ssword! in New Password and Confirm Password
• Click OK
• Do the same password changing step for the Infosec account

Back

Next

Mitigating Identified Vulnerabilities

• Correct User-base vulnerabilities
• Secure Infosec Expirations
• Right-click on the windows account
• Select Properties
• Click to uncheck Password Never Expires
• Click Apply then OK
• Do the same password expiration steps for the Administrator account

Back

Next

Mitigating Identified Vulnerabilities

• Correct User-base vulnerabilities
• Secure Administrator Group
• In the left column click to select Local Users and Groups
• Select the Groups folder
• Double-click on Administrators to open this group
• Click to select BackupAdmin
• Click on Remove
• Click to select Infosec
• Click on Remove
• Click OK
• Close the Computer Management window

Back

Next

Mitigating Identified Vulnerabilities

• Correct Local Policy settings
• Type “Local” in the Search field under the Start button
• Select Local Security Policy
• Configure Policy for strong passwords
• In the left column click on Account Policies
• In the right column double-click on Password Policy
• Change each setting to match the following

Back

Next

Mitigating Identified Vulnerabilities

• Correct Local Policy settings
• Configure Policy for secure logon
• In the left column click on Local Policies
• In the right column double-click on Security Options
• Scroll down to Network Access: Let Everyone permissions apply to anonymous users
• Double-click to open and change to Disabled
• Click OK
• Close Local Security Policy window

Back

Next

Mitigating Identified Vulnerabilities

• Secure running services
• Type “Services” in the Search field under the Start button
• Select Services
• Scroll down to the bottom and double-click World Wide Web Services
• Click Stop then change the field from Automatic to Disabled
• Click OK
• Close the Services window

Back

Next

Mitigating Identified Vulnerabilities

• Turn off Autologon
• Type “netplwiz” in the Search field under the Start button
• Select to open
• Click to check the box “Users must enter a username and password to use this computer”
• Click OK to close the User Accounts window

Back

Next

Rescanning to Confirm Changes

• Click “Start | All Programs | Microsoft Baseline Analyzer 2.2”
• Select Yes on the UAC window that appears
• On the main page, select Scan a Computer
• For Which computer do you want to scan?, accept the defaults
• Under Options, check ONLY the top 2 boxes
• Click Start Scan
• Your results should now show all vulnerabilities corrected EXCEPT the HOMEUSER$ has a non-expiring password
• This setting is needed for the virtual environment.

Back

Next

Submit a screenshot with the date in Canvas.
