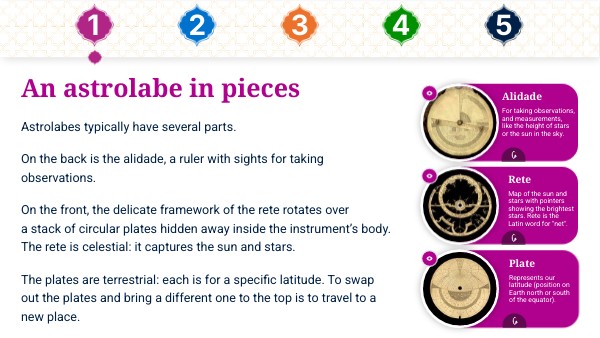

An astrolabe in pieces
Alidade
Astrolabeby Muhammad Mahdi al-Yazdi, Persian, c. 1660 Inv. 46886
For taking observations, and measurements, like the height of stars or the sun in the sky.
Title
Use this side to give more information about a topic.
Astrolabes typically have several parts. On the back is the alidade, a ruler with sights for taking observations. On the front, the delicate framework of the rete rotates over a stack of circular plates hidden away inside the instrument’s body. The rete is celestial: it captures the sun and stars. The plates are terrestrial: each is for a specific latitude. To swap out the plates and bring a different one to the top is to travel to a new place.
Subtitle
Rete
Astrolabe by Muhammad ibn Sa`id as-Sabban, Guadalajara, 1081/2Inv. 52473
Map of the sun and stars with pointers showing the brightest stars. Rete is the Latin word for "net".
Title
Use this side to give more information about a topic.
Subtitle
Plate
Astrolabeby Muhammad Mahdi al-Yazdi, Persian, c. 1660 Inv. 46886
Represents our latitude (position on Earth north or south of the equator).
Title
Use this side to give more information about a topic.
Subtitle
