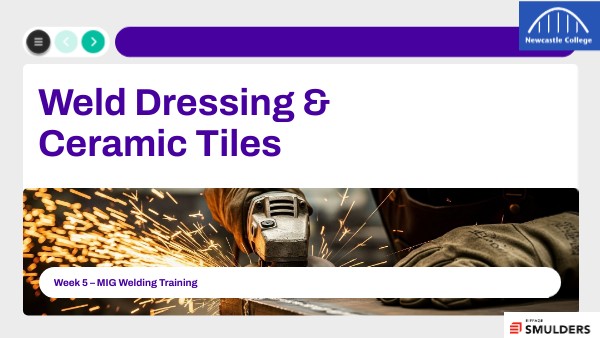

Weld Dressing & Ceramic Tiles
Week 5 – MIG Welding Training
Course Objectives (KSBs)
Knowledge (K): Explain the purpose of weld dressing and its impact on quality. Describe different methods of dressing (grinding, blending, polishing). Understand the role of ceramic backing tiles in welding. Identify situations where ceramic tiles are used and their benefits. Skills (S): Dress welds safely using appropriate tools and techniques. Apply ceramic backing tiles in preparation for welding. Produce welds with ceramic backing and compare outcomes. Inspect dressed welds against standards. Behaviours (B): Follow safe working practices when using grinders and power tools. Demonstrate pride in workmanship by aiming for clean, professional finishes. Take responsibility for selecting the correct dressing method for the job. Show adaptability when applying new techniques such as ceramic tiles.
What is Weld Dressing?
What is Weld Dressing?
Applications: aesthetics, preparation for painting/coating, ensuring clearance
Definition: removing excess weld metal and refining surface finish.
Methods of Dressing
Methods of Dressing
Blending with flap discs.
Grinding with angle grinder.
Safety Considerations
PPE: goggles, gloves, ear protection, fume extraction. Hazards: sparks, flying debris, vibration.
Ceramic Backing Tiles
Purpose: support molten weld metal, improve penetration, protect reverse side.
Applications: butt welds, pressure vessels, piping.
Watch this video
Benefits: time saving, consistent quality, less distortion.
Practical Tasks
- Dress weld beads using grinding and blending techniques.
- Prepare and weld with ceramic backing tile in place.
- Inspect results compared to non-tile welds.
"In this module, you will learn to apply, weld, and finish a joint with ceramic backing, a key technique for professional results."
Inspection & Quality
Inspection & Quality
- Visual inspection of weld finish.
- Check for under-dressing (leaving excess) or over-grinding (weakening weld).
- Assess ceramic tile welds against standards.
Knowledge Check
- What are the main reasons for dressing a weld?
- What benefits do ceramic backing tiles provide?
- What safety equipment is essential when grinding?
Knowledge Check
What are the main reasons for dressing a weld?Dressing a weld, which usually involves grinding it smooth, is done for several key reasons:Aesthetics: To improve the visual appearance of the finished product, giving it a smooth and professional look. Preparation for Coatings: It creates a smooth, uniform surface that is necessary for paint, powder coating, or other finishes to adhere properly. Fitment: To allow other components to sit flush against the welded surface without any gaps. Inspection: To prepare the surface for certain types of non-destructive testing (like dye penetrant inspection) that require a smooth finish. Fatigue Resistance: In critical engineering applications, smoothing the transition at the toe of the weld can reduce stress concentration points and improve the joint's resistance to fatigue.
Knowledge Check
What benefits do ceramic backing tiles provide? Ceramic backing tiles are temporarily placed on the reverse side of a weld joint to provide significant benefits, especially for single-sided butt welds: Supports the Weld Pool: They provide a temporary shelf that supports the molten metal, allowing the welder to achieve a full-penetration root pass from one side without the weld falling through. Shapes the Root Bead: The groove in the tile molds the back of the weld, creating a uniform, high-quality root profile. Saves Time and Money: They eliminate the need for more time-consuming and costly processes like back-gouging (grinding out the root and re-welding from the other side). Improves Quality: They help contain the shielding gas, protecting the root of the weld from atmospheric contamination and ensuring a cleaner, stronger joint.
Knowledge Check
What safety equipment is essential when grinding? Grinding produces high-speed projectiles (sparks, debris) and harmful dust, making proper PPE essential. Eye and Face Protection: At a minimum, safety glasses must be worn. A full-face shield is highly recommended to be worn over the top to protect your entire face from flying particles and a shattering disc. Respiratory Protection: A suitable dust mask or respirator is crucial to prevent inhaling harmful metal dust. Hearing Protection: Angle grinders are extremely loud, so earplugs or ear defenders are necessary to prevent hearing damage. Hand Protection: Durable gloves protect hands from sparks, heat, and sharp edges. Protective Clothing: Fire-retardant overalls or a leather apron should be worn to protect against sparks.
Weld Dressing & Ceramic Tiles
Summary & Next Steps
Weld dressing improves appearance and prepares surfaces for further work. Ceramic tiles improve weld quality and efficiency in specific applications. Both techniques are important for high-quality fabrication. Next Week: Advanced Applications (I-Beams, 6GR, Gouging, Gases).
Thank you for taking the course!
