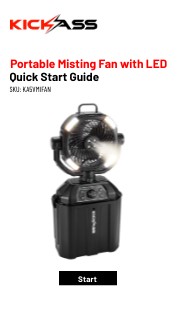

QSG - KA5VMIFAN

Portable Misting Fan with LED

Quick Start Guide

SKU: KA5VMIFAN

Start

INDEX

• Package Contents

• Safety Information

• Device Overview

• Setup Guide

• Remote Control Guide

Package Contents

Box Contains:

• Misting Fan
• Charging Cable
• Remote Control

• Drip Collector
• 2 x Water Pump Hoses
• Water Bucket

Safety Information

• Always turn off the fan when not in use to save battery life and reduce wear.
• Clean the mist outlet, drip collector, and water bucket regularly to prevent blockages and moisture buildup.

• Use only clean water and ice in the water bucket. Do not add oils, chemicals, or other foreign elements.

• Secure the fan properly during use, especially when using the hanging hook, to prevent tipping, falling, or swinging.

• Ensure the fan is placed on a stable surface before operation.
• Store the fan in a cool, dry place when not in use for extended periods.
• Recharge the fan every few months during storage, or if it is not being frequently used, to keep the battery in good condition.

Safety Information

• Check that the hoses are properly connected before using the misting function.
• Before storing the misting fan inside the bucket, make sure it is thoroughly wiped dry. Ensure there are no water droplets or moisture present to prevent mould growth and other potential problems.

Warnings

• The remote control contains a lithium button battery, which is extremely dangerous if swallowed. Keep the remote control and the battery out of reach of children at all times.

• Do not allow children, pets, or loose objects near the fan blades during operation.
• Keep hands, hair, and clothing away from moving parts while the fan is running.
• Do not expose the fan, battery, or charger to water, rain, or extreme moisture except for the misting function's intended water contact areas.

• Do not use the fan near open flames, heat sources, or flammable materials.

Warnings

• Do not use or charge the fan if the battery, charging port, or power cord is damaged.
• Do not attempt to disassemble, modify, or repair the fan, battery, or internal components. Unauthorised repairs may cause electric shock or fire risk.
• Stop using the fan immediately if unusual heat, odour, smoke, or malfunction occurs

Device Overview

1. LED Lamps

2. Mist Outlets

3. Battery Level Indicator

4. Timer Indicator

5. Remote Controller Pocket

6. LED Lamp Power Button

7. Charging Ports (Input/Output)

Device Overview

8. Oscillation Button

9. Timer Button

10. Fan Power/Speed Dial

11. Fan Mist Button

12. Drip Collector Hose Inlet

13. Water Bucket

14. Water Level Window

Operating the Misting Fan

Using the Fan Function

• Rotate the FAN POWER/SPEED dial clockwise to turn on the fan. Adjust the speed by rotating further clockwise to increase, or counterclockwise to decrease.

• To turn off the fan, rotate the dial fully counterclockwise.
• If the oscillation function is active, the fan will return to its base position before powering off completely.

Operating the Misting Fan

Using the Misting Function

• Remove the misting fan from the water bucket and fill with clean water.
• Attach the plain (clear) end of the provided water pump hose to the water inlet port located on the underside of the misting fan.

• Return the water bucket beneath the misting fan, with the hose suspended in the water.

Operating the Misting Fan

Using the Misting Function

1. Install the drip collector around the mist outlet by pressing it firmly into place.
2. Insert the hose into the drip collector’s hose inlet to route collected water back to the bucket.
3. Rotate the FAN POWER/SPEED dial clockwise to turn on the fan and adjust to your desired speed.
4. Press the FAN MIST button to activate the low misting function. The corresponding indicator light will turn on.
5. Press the FAN MIST button again to switch to high misting function.

Note: After using the misting function, empty and wipe the bucket to prevent mold or odors. Always store the fan and bucket clean and dry.

Operating the Misting Fan

Using the Oscillation Function

• Press the OSCILLATION button to activate the oscillation function at 45⁰. The indicator light will turn on.

• Press the OSCILLATION button again to extend the oscillation range to 90⁰.
• To turn off oscillation, press the OSCILLATION button once more. The indicator light will turn off.

Operating the Misting Fan

Using the LED Lamp Function

• Press the LED LAMP button to turn on daylight-style lighting.
• Press the LED LAMP button again to switch to warm lighting.

• Press the LED LAMP button once more to activate both daylight and warm lighting.
• To turn off the lamp, press the LED LAMP button while in combination mode.

• The LED LAMP button cycles through the following sequence:

OFF > DAYLIGHT > WARM > COMBINATION > OFF

Operating the Misting Fan

Using the Timer Function

• The fan offers four timer settings: 1 hour, 2 hours, 4 hours, and 8 hours.
• Press the TIMER button to cycle through the four timer settings. The corresponding LED indicator will light up based on your selection.

• Press the TIMER button once more to turn off the timer.
• The TIMER button cycles through the following sequence:

OFF > 1 HOUR > 2 HOURS > 4 HOURS > 8 HOURS > OFF

Operating the Misting Fan

Using the Power Bank Function

• Use a charging cable compatible with your device that has a USB-A connector on one end. Connect the cable to your device.

• Locate the USB-A charging port on the left side of the fan, covered by a rubber cap.

• Plug the USB-A end of the cable into the fan’s port to begin charging.

Remote Control Guide

Turn the fan ON or OFFChange the fan speedSet a timer for 1, 2, 4 or 8 hoursAdjust the light brightnessTurn on the fan mist functionOscillate the fan 45° or 90°

Setup Complete

You’ve successfully completed the setup guide of your KickAss Portable Misting Fan with LED. The misting fan is now ready to be used.
