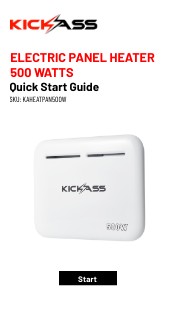

QSG-KAHEATPAN500W

ELECTRIC PANEL HEATER 500 WATTS

Quick Start Guide

SKU: KAHEATPAN500W

Start

INDEX

• Package Contents

• Safety Information

• Device Overview

• Installation Steps

• Setup Guide

• List of Modes

Package Contents

List of Contents

• KickAss Electric Panel Heater 500W
• 2 x mounting feet
• 4 x short screws
• 4 x long screws
• 4 x plastic anchors

Safety Information

• Read the user manual carefully before operating the product.
• Always ensure the power toggle switch is turned OFF before connecting to a power source.
• Keep the heater away from soft or delicate materials, as the area around the heater can become hot.
• This unit must be kept out of reach of children. It should only be operated by responsible adults.
• When choosing a mounting place for the heater, always leave at least 300mm clearance from the top and sides of the unit.

Warnings

• Do not use the heater if it has been dropped or shows any visible damage. For safety, contact KickAss Products for assistance.
• Do not use the product near flammable liquids or any flammable materials.
• Do not place the product directly below a power outlet.
• Do not cover the heater or block the air vents with foreign objects. Obstructing airflow can cause overheating or fire.
• The surface temperature of the heater can reach up to 100°C while in use. Avoid direct contact to prevent burns.
• Always place the heater out of reach of children and individuals with limited mobility or awareness.
• Do not touch the product with wet hands.
• Always turn off and unplug the power cord before cleaning the heater.

Device Overview

1. Display Cover

2. LED Indicators

3. LCD Display Screen

4. Buttons

5. Power Toggle Switch

Installing the heater

The heater can be installed in two ways: free-standing or wall-mounted. How do you plan to use yours?

Wall-mounted

Free-standing

Installation Steps

Installing as free-standing

• Turn the heater upside down to access the base.
• Align the mounting feet with the holes on the bottom of the heater.

Installation Steps

Installing as free-standing

• Using a screwdriver, attach the mounting feet securely with the four short screws provided.
• Make sure all screws are tightened firmly to keep the heater stable and safe during use.

Installation Steps

Installing as wall-mounted

• Hold the bracket level against the wall where you wish to install your heater. Use a ruler or spirit level to ensure the holes are aligned horizontally.

• Mark all four hole positions using a marker.

Note: When choosing a mounting place for the heater, always leave at least 300mm clearance from the ceiling and side walls.

Installation Steps

Installing as wall-mounted

• Using a power drill, drill holes at the marked positions using an 8mm drill bit.

• Then, insert the supplied plastic wall plugs securely into the holes.

Installation Steps

Installing as wall-mounted

• Secure the hanging bracket to the wall using the four long screws provided, being sure to keep it level.

Installation Steps

Installing as wall-mounted

• Secure the hanging bracket to the wall using the supplied four long screws while ensuring proper orientation.

Installation Steps

Installing as wall-mounted

• Place the heater on the lower bracket hooks.
• Gently push the unit upright onto the two support arms of the bracket and slide the unit down to lock in place.

• Lock the heater by turning the two plastic securing grips.

Setting up the device

• Plug the heater into an AC power source such as a wall socket, inverter (700W+), or compatible power station.
• Turn on the POWER TOGGLE SWITCH. The power indicator light will turn on, but the screen will stay blank, indicating that the heater is on standby mode.

Setting up the device

• Press the POWER BUTTON to turn on the heater.
• The default setting is set to the following:

o Heating Mode: Comforto Window Open Function: OFFo Timer: OFFo Day: 1 (Monday)o Temperature Setting: 22°C

Setting up the device

• Press and hold the TIMER BUTTON for 3 seconds to enter time and day settings.
• The screen will show , use and buttons to select the day of the week from 1-7. Use the Day Reference below as a guide.
• Press the TIMER BUTTON to confirm your selection and proceed to hour setting.

Day Reference

Setting up the device

• The screen will show . Press and to set the current hour from 0 to 23. Press the TIMER BUTTON to confirm your selection and proceed to minute setting.
• The screen will show . Press and to set the current minute from 0 to 59. Press the TIMER BUTTON to confirm your selection and save the configuration you have set.

Setting up the device

Mode Button Cycle

• Press the MODE BUTTON to select your desired mode. Each press will cycle through the available modes in the order above.
• To learn more about the modes and their respective function, click below:

List of Modes

List of Modes

Comfort Mode: the temperature can be set from 5°C to 35°C. Use and buttons to adjust.

Eco Mode: the temperature can be set from 1°C to 31°C. Use and buttons to adjust.

Anti-frost Mode: the heater will operate automatically based on the ambient temperature. At 8°C and up, the heater will stay on Standby Mode. At 7°C and below, the heater will operate at a non-adjustable 7°C.

Setting up the device

After selecting your desired mode, use the and buttons to set to your preferred temperature.

Note:

• Temperature can only be adjusted for Comfort and Eco Modes.
• For P1, P2, and P3 Mode, make sure to set your desired Comfort and Eco temperatures before selecting your desired mode. These temperatures will be used throughout the scheduled program.

List of Modes

P1 Mode: first preset heating schedule that automatically changes the mode (between Comfort Mode and Eco Mode) from Monday to Sunday. Heating schedule is as follows:

P2 Mode: second preset heating schedule that automatically changes the mode (between Comfort Mode and Eco Mode) from Monday to Sunday. Heating schedule is as follows:

List of Modes

P3 Mode: an adjustable preset heating schedule that automatically changes the mode (between Comfort Mode and Eco Mode) from Monday to Sunday. The default heating schedule is as follows:

To customise your own heating schedule using P3 Mode, click the button below:

P3 Mode Setup

Setting up P3 Mode schedule

• While in mode selection when the display shows , long press the button for three seconds.
• The display will show (Monday). Use the or buttons to select the day you want to set, from (Monday) to (Sunday). Then, press the button to confirm the day you want to configure and move on to setting the hourly schedule.

• The display will show which means 12AM, following the 24-hour time format. Use the or buttons to select the hour you want to set from to . Then, press the button to confirm the hour you want to configure and move on to setting the heating mode.

Setting up P3 Mode schedule

• There are three options to choose from when setting the heating mode for each hour: Comfort Mode , Eco Mode , and Anti-frost Mode .

• To know which heating mode is selected, see below:

• Comfort Mode – corresponding indicator will light up.• Eco Mode – corresponding indicator will light up.• Anti-frost mode – comfort and eco indicator will not light.

• Press the button to confirm your selection.
• To return to day selection, complete the hourly schedule setting up to , then press the button.

• Continue configuring each day and their respective hours with your preferred heating mode until the full daily schedule is set.

Setting up P3 Mode schedule

• To save your configuration and exit the P3 Mode heating schedule setting, go to and press . This brings you back to which means your configuration has been saved and you are now on mode selection.

Note: The heater will automatically reset to the factory default setting if it has been unplugged from a power source. To keep the schedule you have set for P3 Mode, keep the heater plugged into a power source at all times, using standby mode when not in use.

Need further assistance?

If you require further information not included in this guide, don’t worry - We’re here to help. Please contact us via the applicable Support Form provided below:

KAHEATPAN500W

To be sure that your inquiry goes to the Technical Team. Please make sure to select Technical Assistance as the enquiry type.

Go Back to Index

Button Function

LED Indicators

1. Standy Mode: ON/OFF2. Heating Status 3. Open Window Function 4. Comfort Mode 5. ECO Mode 6. Timer Function

Day Reference

Before we continue

The hanging bracket comes pre-installed at the back of the heater. Before installation, carefully remove the bracket from the heater.

Let's proceed

Setup Complete

You’re all set to enjoy your heater. For detailed instructions and safety information, please refer to the full user manual.
