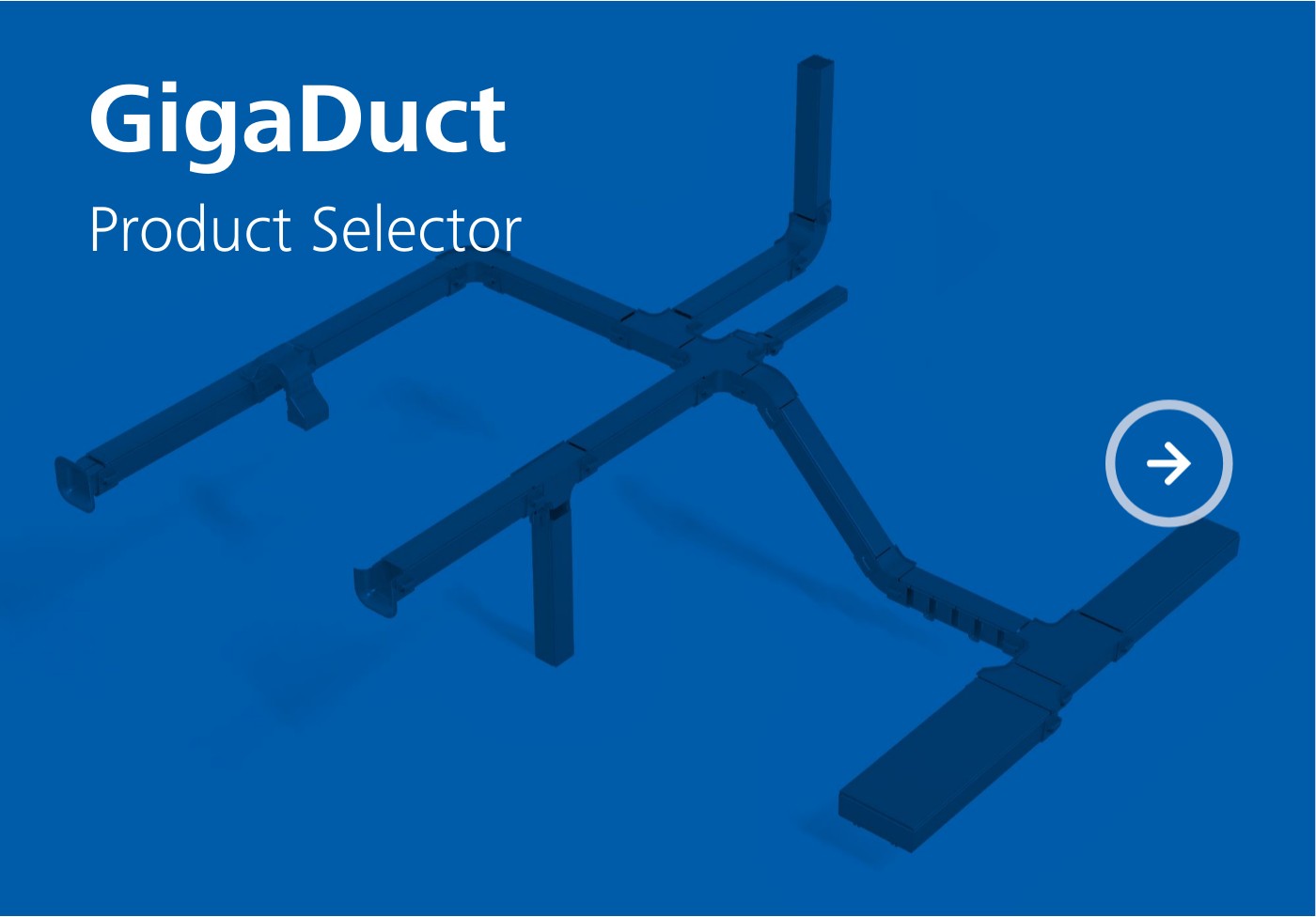

GigaDuct
Product Selector
FITTINGS
90° Horizontal Elbow
Horizontal elbows are used for creating bends that change the direction of horizontal routes. Available with either a 45⁰ or 90⁰ bend. Supplied with or without covers.
The 90° horizontal elbow is available is four sizes 50x50mm, 100x100mm, 200x100mm and 300x100mm.
Read more
FITTINGS
Intersections
Horizontal intersections offer a four way routing pathway to support complex routing requirements. Supplied with or without covers.
The 4-way cross is available in four sizes 50mm to 50mm, 100mm to 100mm, 200mm to 200mm and 300mm to 300mm. Also available Horizontal Reducer intersections.
Read more
FITTINGS
Outlet Adaptor
Outlet adaptors are used to support best practice transition of cables vertically. An open void adapter provides additional protection for the fibre drop, while conduit adapters allow 32mm or 50mm GigaDuct conduit to be secured in place to offer full protection of fibre cables dropping vertically in racks and cabinets
Read more
FITTINGS
45° Inside Vertical Elbow
Inside elbows create a vertical upward transition. Available with a 45⁰ or 90⁰ bend. Supplied with or without covers.
The 45° vertical inside elbow is available is four sizes 50x50mm, 100x100mm, 200x100mm and 300x100mm.
Read more
FITTINGS
End Cap
End Caps provide essential protection, containment, and a clean finish for the termination points of a fibre optic cable routing system. The end caps are available in four sizes 50x50mm, 100x100m, 200x100mm and 300x100mm.
Read more
FITTINGS
Horizontal T-Junctions
Horizontal T-Junctions are used to branch off from the main horizontal GigaDuct routes to equivalent size routing. Supplied with or without covers.
The horizontal tee is available in four sizes 50x50mm, 100x100mm, 200x100mm and 300x100mm.
Read more
FITTINGS
3 Sided Trumpet
The 3 sided trumpet attaches to a duct or fitting to limit the bend radius of the cable when exiting the channel. The 3 sided trumpet is available in three sizes 50x50mm, 100x100mm and 200x100mm.
Read more
FITTINGS
90° Vertical Inside Elbow
Inside elbows create a vertical upward transition from GigaDuct horizontal routes. Available with a 45⁰ or 90⁰ bend. Supplied with or without covers.
The 90° vertical inside elbow is available is four sizes 50x50mm, 100x100mm, 200x100mm and 300x100mm.
Read more
FITTINGS
Horizontal Reducer
Horizontal straight reducers are used for coupling horizontal straight duct of two different sizes. Supplied with or without covers.
The reducer is available in four sizes 300mm to 200mm, 300mm to 100mm, 200mm to 100mm and 100mm to 50mm.
Read more
FITTINGS
45° Outside Vertical Elbow
Outside elbows create a vertical downward transition. Available with a 45⁰ or 90⁰ bend. Supplied with or without covers.
The 45° vertical outside elbow is available is four sizes 50x50mm, 100x100mm, 200x100mm and 300x100mm.
Read more
COUPLERS
Tool-free Coupler
GigaDuct innovative tool-free couplers are used to connect horizontal straight duct, elbows, T-junctions, intersections and reducers without the need for nut, bolts and hand tools.
The tool-free couplers are available in four sizes 50x50mm, 100x100mm, 200x100mm and 300x300mm.
Read more
STRAIGHT DUCT
Horizontal Straight Duct
Horizontal straight duct is used to support straight runs of optical fibre cable. A variety of mounting options are available to support different installation environments.
The duct is available in four sizes 50x50mm, 100x100m, 200x100mm and 300x100mm.
Read more
FITTINGS
Slotted Channel Trumpet
Slotted channel trumpets are used for maintaining proper bend radius of fibre exiting from slotted duct.
Used with 50x50mm and 100x100mm slotted Duct.
Read more
FITTINGS
Express Waterfall Outlet
Low-profile express waterfall outlets are easily placed over the sidewall of any new or existing straight duct to create a radius-controlled vertical drop off from a horizontal run. The outlet has a cover that allows access to any fibres which bypass the outlet without removing the main cover and fits 100mm, 200mm and 300mm channels.
Read more
FITTINGS
Vertical T-Junctions
Vertical T-Junctions are used to branch off from the main horizontal GigaDuct route to equivalent size vertical routing. Supplied with cover.
The vertical tee is available in two sizes 50x50mm and 100x100mm.
Read more
FITTINGS
Horizontal Reducer T-Junctions
Horizontal reducer T-Junctions are used to branch off from the larger main horizontal GigaDuct routing to smaller horizontal routing. Supplied with or without covers.
The horizontal reducer tee is available in two sizes 200mm to 100mm and 100mm to 50mm.
Read more
STRAIGHT DUCT
Slotted Duct
Slotted ducts provide a protective path for optical fibres where access is required to the front or rear of equipment racks and can be installed horizontally or vertically.
The slotted ducts are available in two sizes 100x100mm and 50x50mm with either 100mm or 50mm pitch.
Read more
FITTINGS
4 Sided Trumpet
The 4 sided trumpet attaches to a duct or fitting to limit the bend radius of the cable when exiting the channel.
The 4 sided trumpet is available in three sizes 50x50mm, 100x100mm and 200x100mm.
Read more
