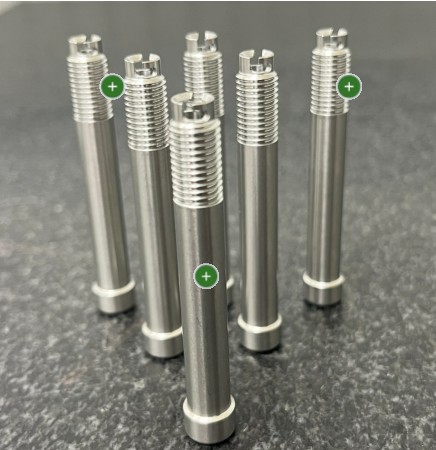

Milled and deburred the twist-lock feature

  • Drilled a hole all the way through
  • Swiss machined threads
  • (.450 min / .550 max inclusion)
  • Swiss machined inside chamfer
  • (0.030 X 45 deg)

Multi-axis Swiss Machined

  • Single setup - no secondary machining processes
  • Length: 2.5”
  • Diameter: Turned 0.313 OD on the shaft from ⅜” rod
  • Material: 300 Stainless Steel
  • Deburred
  • Passivated per AMS-2700
