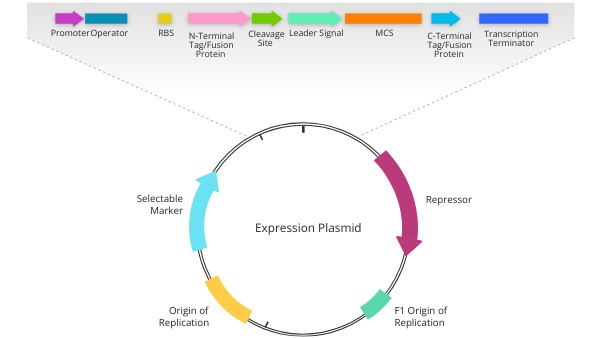

Anatomy of an Expression Vector

F1 Origin of Replication

The F1 origin of replication is derived from the filamentous phage F1 and enables the production of single-stranded DNA in bacterial plasmids. When a helper phage is present, the F1 origin allows the plasmid to replicate as single-stranded DNA, which is used in applications like DNA sequencing or phage display. It does not affect normal plasmid replication but provides an additional replication mode under specific conditions.

Ribosomal Binding Site (RBS)

This site, located at the 5' untranslated region (UTR) of the mRNA transcript, regulates protein synthesis based on its sequence and structure. There are two consensus sequences, named Kozak and Shine-Dalgarno (after their discoverers), which are known to facilitate efficient translation in Eukaryotes and Prokaryotes, respectively. Kozak Sequence (Eukaryote) Preferred sequence context that allows effective ribosomal binding at the initiation site. The favored context is: -6 -5 -4 -3 -2 -1 1 2 3 4 G C C A C C A U G G Around the initiating methionine (AUG), with the A at the -3 being the most important, and a purine at +4, preferably G, being next most influential. [Kozak, M. (1991) J. Biol. Chem. 266, 19867-19870. (pdf) Shine Dalgarno (SD) Sequence (Prokaryote) The SD sequence is complementary to the 3' end of the 16S rRNA. Its consensus sequence is 5'-UAAGGAGG-3', which is followed by an initiation codon, most commonly AUG. (About 8% of start sites use GUG, whereas UUG and AUU are rare initiators present in autogenously regulated genes). The optimal spacing between the SD sequence and the start codon is 8 nucleotides. Still, translation initiation is severely affected only if this distance is reduced below 4 nucleotides or increased above 14 nucleotides. [Shine, J. and Dalgarno, L. (1975) Eur. J. Biochem. 57, 221.] An additional mRNA feature affecting translation initiation is the downstream box (DB), located after the initiation codon and complementary to bases 1469-1483 of the 16S ribosomal RNA. DBs consensus sequence is: 5'-AUGAAUCACAAAGUG-3'.

Operator

An operator is a DNA sequence that regulates transcription by interacting with a repressor protein. When the repressor binds to the operator, it blocks RNA polymerase from initiating transcription of the target gene. Upon adding an inducer, the repressor is released, allowing gene expression. This enables the controlled and inducible production of proteins in host cells.

Fusion tag/ protein

A protein or a peptide usually located either on the C- or N-terminal of the target protein, which facilitates one or several of the following characteristics:

• Improved solubility - Fusion of a soluble protein/peptide to the N-terminus of the target protein often improves the solubility of the target protein.
• Allows detection - Fusion of a short peptide (epitope tag) or protein to the target protein can facilitate the detection of the resulting protein either by the use of antibodies (in Western blot analysis) or by biophysical methods, such as Green Fluorescent Protein (GFP)
• Improved purification - Fusion of a short peptide or protein can facilitate purification of the target protein, as many of these fused peptides/proteins can bind specifically to affinity resins.
• Localization – Specific tags, usually located at the N-terminus of the target protein, can act as an address for sending protein to a specific cellular compartment.
• Improved Expression - Fusion of a highly-expressed protein/peptide to the N-terminus of the target protein may facilitate enhanced expression of the target protein.
• Notice: The fusion protein must be cloned in the same open reading frame as the target protein. Stop codons between the target protein and the fusion partner should be omitted.

Cleavage Site

A protease cleavage site is a short amino acid sequence recognized by a specific protease enzyme. It is typically placed between a fusion tag and the target protein. After protein expression and purification, the protease cleaves at this site to remove the tag, yielding the native form of the protein. This enables easier purification and functional studies, eliminating the influence of the tag on the protein's structure or activity. It is often recommended to cleave off the fusion tag or protein since they can interfere with: • Activity assays • Antibody production against the target protein • Determination of the 3D structure of the protein

Promoter

A specific DNA sequence that initiates transcription of the target gene by recruiting RNA polymerase. Its activity determines the timing and level of gene expression. Promoters can be constitutive (always active) or regulated (inducible or repressible). Inducible promoters require specific molecules to activate transcription, allowing controlled protein expression. In contrast, repressible promoters can be turned off under certain conditions, providing flexibility in gene regulation during protein production. In expression vectors, the promoter is usually positioned 10-100 nucleotides upstream of the ribosome binding site. Common promoters, suitable for expression plasmids, need to be powerful enough to produce high amounts of proteins and exhibit minimal levels of basal transcription. A highly repressible promoter is especially important when the protein of interest is toxic or detrimental to the growth of the host cell.

Origin of Replication

An origin of replication is a specific DNA sequence where replication begins on a chromosome, plasmid, or virus. It controls the number of copies of a plasmid that are made in a cell, influencing plasmid stability and cell growth. High-copy origins increase plasmid stability but may slow cell growth. It also determines plasmid compatibility, as plasmids with the same origin can't coexist in the long run in the same cell, due to shared replication machinery.

Selectable Marker

Selectable markers are required for the maintenance of the plasmid in the cell. Due to the presence of the selective marker, the plasmid becomes useful for the cell. Under the selective conditions, only cells that contain plasmids with the appropriate selectable marker can survive. Commonly, genes that confer resistance to various antibiotics are used as selective markers in cloning vectors. The drawbacks of this approach are: 1. loss of selective pressure as a result of antibiotics degradation and inactivation. 2. Contamination of the product or biomass by antibiotics may be unacceptable from medical or regulatory considerations.

Transcription Terminator

The transcription terminator is located at the 3' end of the target gene. It enhances plasmid stability by preventing transcription through the replication region and through other promoters present on the plasmid. Continued transcription from strong promoters into the replication region can destabilize plasmids due to overproduction of the ROP protein, which is involved in the control of plasmid copy number. The presence of transcription terminators also prevents the formation of antisense RNAs from downstream promoters operating in reverse orientation with respect to the target gene. In addition, the transcription terminator enhances the stability of the mRNA transcript by a stem-loop formation at the 3' end.

Repressor

A repressor element encodes a protein that binds to the operator region, blocking transcription of the target gene. lacIq is a variant of lacI repressor that produces higher levels of the repressor. This system enables tight regulation of gene expression; inducers, such as lactose and IPTG, can inactivate the repressor, allowing for controlled, inducible protein production. It's especially useful for minimizing background expression and optimizing timing during recombinant protein synthesis.

MCS (Multiple Cloning Site) / Polylinker

This region contains several recognition sites for restriction enzymes. Restricting the plasmid with one of these restriction enzymes does not disrupt any of its essential features and may serve to insert the desired DNA fragment containing your gene of interest. By having many unique restriction enzyme recognition sites in close proximity, polylinkers provide numerous options for restriction cloning.

Leader Signal

A leader signal, or signal peptide, is a short amino acid sequence at the N-terminus of a protein. It directs the newly synthesized protein to the secretory pathway, typically the endoplasmic reticulum in eukaryotes or the periplasm in bacteria. The signal peptide facilitates protein translocation across membranes and is usually cleaved off once the protein reaches its destination, enabling proper folding, processing, or secretion of the expressed protein.

Fusion tag/ protein

A protein or a peptide usually located either on the C- or N-terminal of the target protein, which facilitates one or several of the following characteristics:

• Improved solubility - Fusion of a soluble protein/peptide to the N-terminus of the target protein often improves the solubility of the target protein.
• Allows detection - Fusion of a short peptide (epitope tag) or protein to the target protein can facilitate the detection of the resulting protein either by the use of antibodies (in Western blot analysis) or by biophysical methods, such as Green Fluorescent Protein (GFP)
• Improved purification - Fusion of a short peptide or protein can facilitate purification of the target protein, as many of these fused peptides/proteins can bind specifically to affinity resins.
• Localization – Specific tags, usually located at the N-terminus of the target protein, can act as an address for sending protein to a specific cellular compartment.
• Improved Expression - Fusion of a highly-expressed protein/peptide to the N-terminus of the target protein may facilitate enhanced expression of the target protein.
• Notice: The fusion protein must be cloned in the same open reading frame as the target protein. Stop codons between the target protein and the fusion partner should be omitted.
