Interrow Master Module
Master modules are identical to normal modules except they have either one or two additional sockets for connection to slave modules. These connections include ethernet and 12V power.
All the other inputs and outputs function as normal.
Standard dual section interrow master module (PN: BOX002-MS2)
Interrow Slave Module
Slave modules are identical to normal modules except they have no independent 12V power lead, and the “console” connector has a male gender for connection to the master module.
All the other inputs and outputs function as normal though data can be shared between sections. For example, lift and speed might be common between sections and only require one data source.
Standard interrow slave module (PN: BOX002-MS1)

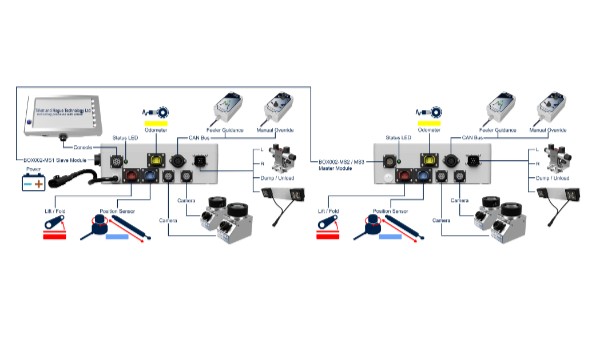

Inter-row Dual Diagram
