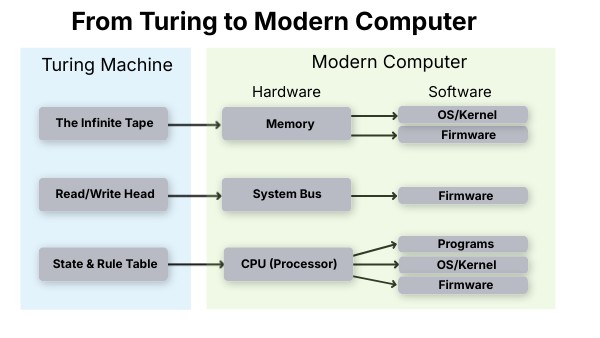

From Turing to Modern Computer
Modern Computer
Turing Machine
Hardware
Software
Firmware
OS/Kernel
The Infinite Tape
Memory
System Bus
Read/Write Head
Firmware
Programs
OS/Kernel
Firmware
CPU (Processor)
State & Rule Table
The Infinite Tape
Turing's model imagines a tape of infinite length divided into sequential squares. Each square holds a single piece of information. The tape itself is completely passive—it doesn't perform any calculations, so it requires no rules or instructions. It simply holds data in a linear sequence, waiting for the Head to move left or right and read or rewrite one square at a time.
Memory & Storage
Like Turing's tape, your computer's memory stores information linearly. However, instead of physical "squares," a computer uses an address system. Every piece of data has a numeric address telling the processor exactly where it sits relative to all other data. This allows the computer to jump directly to any specific location—like grabbing a 32-byte chunk starting exactly at the 3-millionth byte—without having to scroll through the entire "tape" from the beginning. Memory devices have their own specific software that controls how they work, called "firmware".
Read/Write Head
In Turing's model, the Head is the active pointer that interacts with the passive tape. It can perform exactly three functions: it reads the symbol written on the current square, it writes a new symbol to change that information, and it mechanically moves the tape one square to the left or to the right based on the rule table. Without the head, the data on the tape just sits there; the head is the mechanism that allows the machine to access and alter its memory.
The System Bus
In a physical computer, there is no mechanical arm rolling back and forth over a tape. Instead, the "head" is replaced by the System Bus—a massive superhighway of microscopic copper wires etched into the motherboard. This network of wires acts as a data conveyor belt, transmitting high-speed electrical pulses instantly between the CPU and specific RAM addresses. Whenever the processor needs to read from or write to a memory location, the data travels along these physical pathways to reach its destination.
The System Bus
While the System Bus provides the physical copper wires to move data, the wires themselves don't know how to organize traffic. To solve this, the bus relies on a dedicated hardware chip (a bus controller) running its own built-in software called firmware. This firmware acts as an electronic traffic cop—it synchronizes the timing of data packets traveling down the pathways, prevents electrical signals from crashing into each other, and ensures that data leaving the CPU arrives at the exact right memory address without getting corrupted.
State & Rule Table
This is the "program" or the brain of the Turing Machine. It consists of a fixed list of step-by-step instructions (the transition table) that tells the machine exactly what to do next based on two pieces of information: the machine's current State and the Symbol it currently reads on the tape square. Each rule dictates what new symbol to write, which way to move the head (left or right), and what new state to switch to. Without this table, the machine has no logic and cannot process data.
CPU
The CPU is the physical hardware that acts as the execution engine of a modern computer. Instead of an abstract table of written rules, the CPU contains billions of microscopic electronic switches called transistors. When it fetches an instruction from memory via the system bus, these transistors flip between 0 and 1, changing the electrical state of the chip. This physical change in state is what allows the CPU to perform mathematical calculations, decode instructions, and decide exactly what the computer will do next.
Firmware, OS, Applications
- The CPU relies on layers of software to turn those abstract rules into real-world actions.
- Microcode & Firmware (Hardware Logic): Firmware that acts as an internal translator, breaking down complex programming instructions into the raw steps required to physically flip the chip's billions of transistors.
- The OS & Kernel (The Orchestrator): The Operating System's Kernel sits directly above the hardware, acting as the master scheduler.
- High-Level Programs (The Applications): These are the games, web browsers, and code scripts that users interact with. Written in human-readable languages, these applications are ultimately compiled down into machine code—a series of binary instructions that the Kernel passes to the CPU to execute the developer's logic.
Programs & Memory
- Firmware: Program embedded in memory that tells it how to operate.
- Operating System (Windows, MacOS, GNU): Manages memory and other systems.
- The Kernel (NT, XNU, Linux): A core program inside of the Operating System that tells the machine exactly where to move its imaginary "Read/Write Head." It decides which app gets to read from memory, which app gets to write to memory, and strictly blocks apps from messing with each other's data squares.
