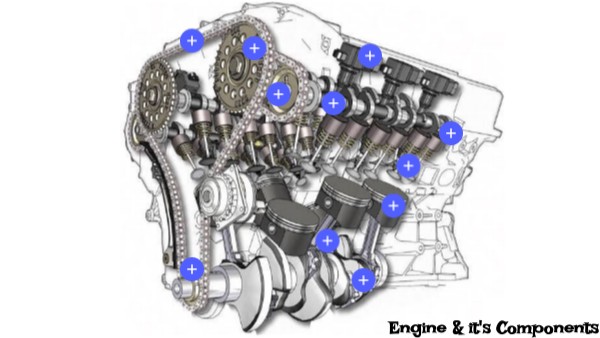

Engine & it's Components

Engine & it's Components

DRIVE CHAIN

In an engine, a drive chain, often called a timing chain, is a crucial component that synchronizes the rotation of the crankshaft and camshaft, ensuring valves open and close at the correct times. Precise timing is essential for the engine to function correctly, ensuring proper combustion and preventing damage from valve collisions with pistons.

• Why use a chain?
• Using timing gears is very expensive and can be quite noisy, while chains are more durable and require less maintenance than belts.

CRANKSHAFT SPROCKET

In an engine's timing system, the crankshaft sprocket, also known as a timing gear, is a crucial component that synchronizes the crankshaft's rotation with the camshaft, ensuring proper valve timing and engine operation.

Accurate timing is essential for the engine to function correctly, ensuring that the valves open and close at the right time during the combustion cycle.

WATER PUMP

The water pump is a critical component of a car's engine cooling system, vitally important in maintaining optimal engine temperature and preventing overheating. Its importance cannot be overstated, as a failed water pump can lead to costly engine damage, repairs, or even complete engine failure.

ROCKER ARM

In an engine's valve train, a rocker arm is a pivoting lever that transmits the motion of the camshaft to the valves, opening and closing them to control airflow and fuel intake/exhaust gas expulsion.

• Types:
• Stamped Steel Rocker Arms: These are common and cost-effective.
• Aluminum Rocker Arms: Used in higher-revving applications for reduced weight and improved performance.
• Roller Tipped Rocker Arms: These have a roller on the tip of the valve end, reducing friction and wear.

CAMSHAFT

A camshaft is a shaft that contains a row of pointed cams in order to convert rotational motion to reciprocating motion. Camshafts are used in piston engines (to operate the intake and exhaust valves),mechanically controlled ignition systems and early electric motor speed controllers. Camshafts in piston engines are usually made from steel or cast iron, and the shape of the cams greatly affects the engine's characteristics.

CAM

In an engine, a "cam" refers to a camshaft, a crucial component that controls the opening and closing of the intake and exhaust valves, ensuring the engine's efficient operation by synchronizing these actions with the movement of pistons.

ENGINE VALVES

Engine valves are crucial components that control the flow of air and fuel into the combustion chamber and the expulsion of exhaust gases, with two main types: intake valves for admitting the air-fuel mixture and exhaust valves for expelling burnt gases.

• Types of Engine Valves:
• Poppet Valves: These are the most common type, featuring a disc-shaped valve that moves up and down to open and close the port.

• Sleeve Valves: These valves use a sleeve or tube that slides or rotates to control the intake and exhaust process, historically used in some aviation and high-performance engines.

• Other Types: There are also rotary, slide, and reed valves, though less common in modern engines.

PISTON

A piston is a cylindrical component that moves up and down inside a cylinder, converting the expanding force of combustion gases into mechanical energy, which is then transmitted to the crankshaft. The piston moves linearly (up and down) within the cylinder, and this movement is converted into rotational motion by the connecting rod and crankshaft.

• Intake: The piston moves down, drawing a fuel-air mixture into the cylinder.
• Compression: The piston moves up, compressing the fuel-air mixture.
• Combustion: The compressed mixture is ignited, forcing the piston down.
• Exhaust: The piston moves up, expelling the burnt gases out of the cylinder.

CONNECTING ROD

The connecting rod, also known as a "con rod," is a vital component that connects the piston to the crankshaft, converting the piston's reciprocating motion into the crankshaft's rotational motion.

• Types:
• I-beam: A common type of connecting rod design, known for its strength and durability.
• H-beam: Another common type, offering a good balance of strength and weight.
• Cast, Forged, Billet, and Powdered Metal: These are the materials used to manufacture connecting rods, each with its own advantages and disadvantages.

CRANKSHAFT

In an internal combustion engine, the crankshaft's primary function is to convert the reciprocating (up-and-down) motion of the pistons into rotational motion, which then drives the vehicle's wheels or machinery. It features strategically placed crankpins and counterweights to ensure smooth and continuous engine operation.

Crankshafts are typically made from forged steel or cast iron to withstand the high stresses and loads they experience.

CRANKSHAFT SPROCKET

In an engine's timing system, the crankshaft sprocket, also known as a timing gear, is a crucial component that synchronizes the crankshaft's rotation with the camshaft, ensuring proper valve timing and engine operation.

Accurate timing is essential for the engine to function correctly, ensuring that the valves open and close at the right time during the combustion cycle.
