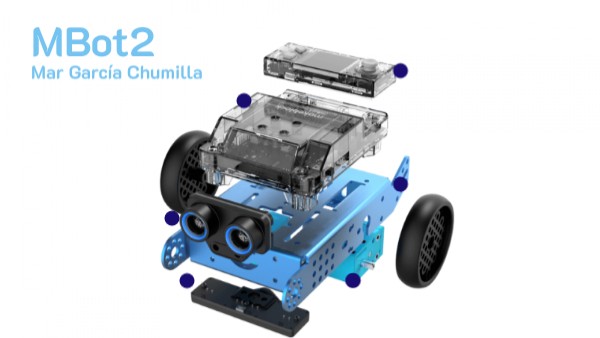

MBot2 Interactive Image

MBot2

Mar García Chumilla

Actuators

Motor:

A motor is a component of bots that converts electrical energy into mechanical energy, allowing the robot to move. This robot has two botors that spin wheales, making it move.

This is how the motors looks like:

Sensors

This is one of the sensors of the robot, it has a light sensor with a color sensor included. The light sensor detect changes in ambient light, and the color sensor detects the primary colors, red, blue and green.

Sensor: Ultrasonic

This is one of the sensors that the robot have. It function is to measure the distance by calculating the the time it takes for an ultrasonic wave to reach an object and come back

Structure

The structure gaves the robot its shape and holds its components. The structure of each bot varies depending on the robot's functions. For example, to move, robot need rigid elements asembled with mobile joins

This is the chasis of this bot

Energy

This bot has a rechargeable battery. When the batery is over, you have to plug the battery to a computer with a wire, and it will recharge

CyberPi

Is the "brain" of the bot. It recive external stimuli and respond to them, so it controls all it's functions.
