Network fundamentals - Quiz

1/4

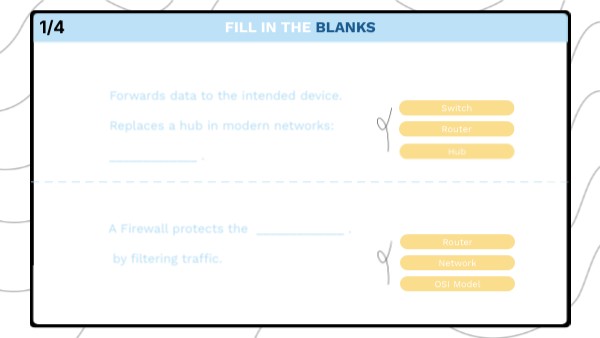

FILL IN THE BLANKS

Forwards data to the intended device. Replaces a hub in modern networks: _____________ .

Switch

Router

Hub

Switch

A Firewall protects the _____________ . by filtering traffic.

Network

Router

Network

OSI Model

2/4

FILL IN THE BLANKS

An 'Access Point' extends _____________ network coverage.

Wireless

Wireless

Repeated

Despite

A ___________ amplifies and extendsnetworks signal.

Repeater

Hub

Repeater

Gateway

3/4

guess the OSI model

• Presentation layer
• preparing data so that it can be used by the application layer
• responsible for translating incoming data the application layer of the receiving device can understand.

• The Session Layer
• Opening and closing communication between the two devices
• Between Transport & Presentation layer

• Layer 1
• Cables
• Switches
• Data converts into a bit stream

• Layer 3
• Facilitates data transfer between two different networks
• Breaks up segments from the transport layer into packets

• Layer 7
• Directly interacts with the users data
• Web browsers rely on it
• Software is not part of this layer

PHYSICAL LAYER

LAYER 6

LAYER 5

APPLICATION LAYER

Network Layer

4/4

Link the Topology

• 3: TREE
• 4: BUS
• 1: STAR
• 2: MESH

Network Topologies

Network Topologies

The solution will appear in 30 seconds

Try to identify the OSI Layer before flipping the card. If you get it right, click on the sign ✔, and if you get it wrong, select ✖.
