Lane Ropes
Lane ropes are floating dividers that separate each lane in the pool. They are designed to minimize wave interference, ensuring that swimmers are not disrupted by turbulence created by other competitors. The ropes are color-coded, which helps swimmers identify their lane positions more easily.
Overflow Gutters (Wave Control System)
Overflow gutters are installed along the edges of the pool to absorb waves and prevent water from bouncing back in. This keeps the surface calm and ensures fair conditions by reducing turbulence. They also help maintain a consistent water level.

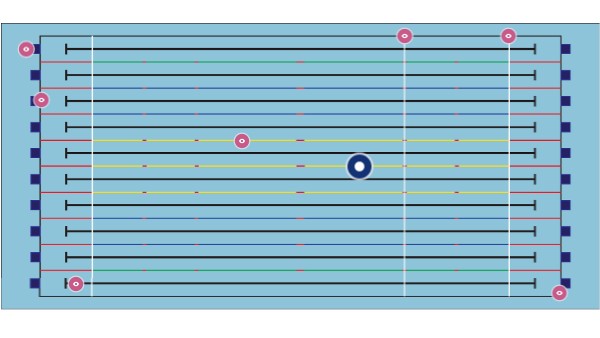

The Pool
The pool must have a minimum depth of 2.0 meters, with 3.0 meters recommended to reduce waves. The water temperature is maintained between 25°C and 28°C to ensure ideal racing conditions. The competition pool follows Olympic standards, measuring 50 meters in length and 25 meters in width. It consists of 10 lanes, but typically only 8 are used for competition. The outer lanes (Lane 0 and Lane 9) help reduce wave interference. Each lane is 2.5 meters wide, providing swimmers with sufficient space to perform at their best.
Backstroke Turn Indicators
Backstroke turn indicators are suspended above the pool at a distance of 5 meters from each wall. These indicators help backstroke swimmers anticipate the approaching wall, allowing them to prepare for a turn or finish. Without these markers, swimmers might misjudge their distance and lose valuable time.
Starting Platform
The starting platform is located at one end of the pool and is used by swimmers to begin their races. It is equipped with an anti-slip surface to ensure a secure start. Additionally, it features an adjustable backplate, which allows swimmers to optimize their push-off. In professional competitions, the platform is often integrated with electronic timing sensors to record reaction times accurately.
Turn and Finish Walls
The walls of the pool are covered with non-slip material to provide a safe surface for turns and finishes. Designed for strong push-offs, they help swimmers maintain speed and include visual markers for precise turns. They also hold the touchpads for accurate electronic timing.
Lane Markings
Lane markings are black lines painted on the bottom of the pool to help swimmers maintain a straight course. These lines extend the entire length of each lane. At the end of every lane, a "T"-shaped marking indicates the approaching wall, assisting swimmers in timing their turns and finishes accurately.
False Start Rope
The false start rope is positioned 15 meters from the starting platform. If a false start occurs, the rope is released and falls into the water to stop swimmers from continuing the race. This prevents unnecessary fatigue and ensures that all competitors restart under fair conditions.
