P1 - Weiling - 228 - EN

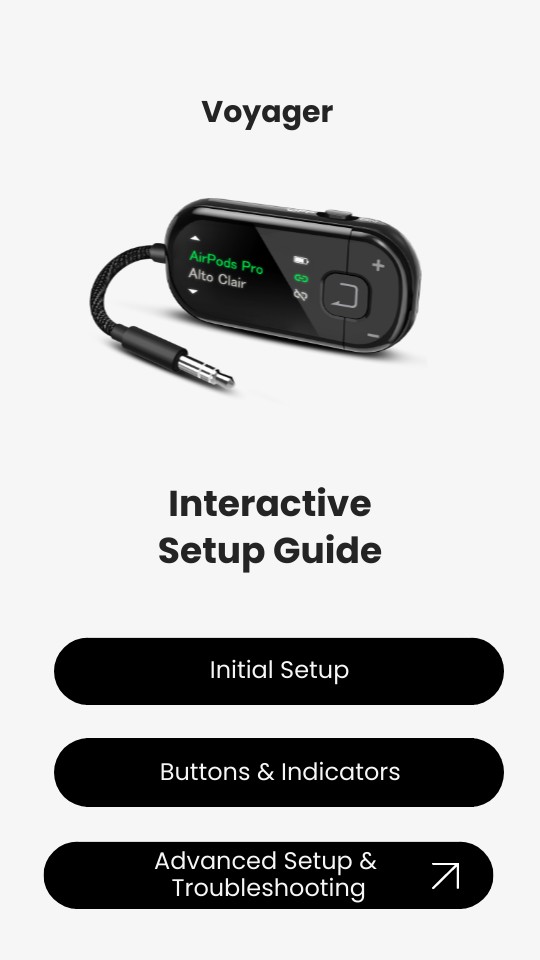

Voyager

Interactive Setup Guide

Initial Setup

Buttons & Indicators

Advanced Setup & Troubleshooting

Start Over

< Back

Buttons & Indicators

Volume Up & Select Device

Volume Down & Select Device

Auracast

Pair / Connect / Disconnect

Power Off

Bluetooth On

Note: The button's silk-screen print may vary by batch and could either be "ON" or " ".

Next

Start Over

< Back

Screen Indicators

Bluetooth Codec

Battery Status

Connection Status

Device Names

Broadcasting

Continue to setup

Start Over

< Back

Before we start

A few important notes:

Set Up Before Flight

We suggest setting up your device before your flight to ensure everything works smoothly.

Start Over

< Back

Set Up Before Flight

We suggest setting up your device before your flight to ensure everything works smoothly.

Does not work as a receiver and will only pair with your Bluetooth audio devices (not your phone).

Transmitter Only

Next

Start Over

< Back

Choose a way you will use

The Voyager supports Classic Bluetooth and also the newest Bluetooth LE Audio Auracast. Choose a way you will use it.

Note: Auracast broadcasting only works with devices that also support Auracast. Click here to find the list of Auracast supported devices.

Classic Bluetooth

Auracast

Start Over

< Back

Switch the transmitter to bluetooth mode

Switch the button to “ON” position. The screen will display "Bluetooth."

Note: The button's silk-screen print may vary by batch and could either be "ON" or " ".

It is in bluetooth mode

Start Over

< Back

Is the transmitter in pairing mode?

Is the screen displaying "Put in Pairing mode, disconnect from phone"

Yes

No

Start Over

< Back

Put the transmitter in pairing mode manually

Press & hold the button for 2 seconds untill the screen displays "Put in Pairing mode..."

Note: The button's silk-screen print may vary by batch and could either be " " or " ".

The transmitter is in pairing mode

Start Over

< Back

Turn Phone's Bluetooth Off

To prevent pairing interference, turn off Bluetooth on your phone and other connected devices.

Phone's Bluetooth Off

Start Over

< Back

Select your headphones' brand to pair

AirPods (Pro)

AirPods Max

Bose

Beats

Sony

Samsung

JBL

Others

Start Over

< Back

AirPods to Pairing Mode

1. Open the lid (AirPods in the case)

2. Press and hold the button on the back of the case until the front LED light flashes white.

Yes, in pairing mode

Different model?

Start Over

< Back

AirPods Max to Pairing Mode

Press and hold the noise control button (on the right ear cup) until the LED light at the bottom flashes white.

Yes, in pairing mode

Different model?

Start Over

< Back

Sony Headphones to Pairing Mode

While your headphones are off, press and hold the power button for 7 seconds until the indicator light flashes blue (or red & blue) rapidly. You’ll hear “Bluetooth pairing”.

Yes, in pairing mode

Different model?

Start Over

< Back

Bose Headphones to Pairing Mode

1. Turn the headphones on.

2. Slide and hold the power switch to the position for 5 seconds until the front LED light flashes blue.

Yes, in pairing mode

Different model?

Start Over

< Back

Galaxy Buds to Pairing Mode

1. Put the earbuds in the case.

2. Close the lid and wait for 5~6 seconds.

3. Take the earbuds out again. They will automatically enter pairing mode.

Yes, in pairing mode

Different model?

Start Over

< Back

JBL Headphones to Pairing Mode

1. Turn the headphones on

2. Press and hold the Bluetooth button or power button until the LED flashes blue & red alternately (Tune 770NC flashes blue only).

Yes, in pairing mode

Different model?

Start Over

< Back

Beats Headphones to Pairing Mode

1. Turn the headphones on

2. Press and hold the power (or "mode") button until the LED indicator flashes white.

Yes, in pairing mode

Different model?

Start Over

< Back

Search for headphones pairing mode

Settings vary by model. Please check your headphone's user manual or search on Google.

Visit Google

In pairing mode already

Start Over

< Back

Hold them close & wait for searching out

Keep Voyager and your device close, wait 5-10s. Once found, your device's name appears. Press '+' or '-' to view all device names.

Searched out

Can't search out the device

Start Over

< Back

Choose device & connect

Press the button once to connect the device name you selected.

They are connected

Start Over

< Back

Troubleshooting

If they fail to connect, press and hold the button for 5 seconds to re-enter pairing mode, then follow the troubleshooting steps below:

1. Check Headphones Pairing Mode

80% of connection issues occur because headphones aren't in pairing mode.

2. Turn Off Phone's Bluetooth

Ensure your headphones aren't connected to another device, such as your smartphone.

Got it

Still not connecting?

till t onnected

Start Over

< Back

Reset the transmitter

Press & hold both the "-" & "+" buttons for about 10 seconds or until the screen shows "Put in Pairing mode...".

Transmitter is reset

Start Over

< Back

Plug the transmitter into an audio source

Plug the Voyager into an in-flight entertainment system (use the adapter if necessary) or any other audio source with an AUX 3.5mm audio output jack.

It's plugged in

Start Over

< Back

Check your headphones for sound

Turn your audio source on & play something. You should be able to hear audio through your headphones. If not, try adjusting the volume on either the transmitter or the audio source.

Headphones are working

Work with audio lag?

Headphones are not working

Start Over

< Back

Optimized for devices with aptX-Adaptive or Low Latency support to minimize audio delay. Individual sensitivity to latency may vary.

Low Latency

Note: AirPods do not currently support low latency.

Got it

Need help

Start Over

< Back

Troubleshooting

• Restart Devices: Turn off all devices. For AirPods, place back in the case and remove. Wait up to 10 seconds for a solid blue light on Relay, indicating reconnection.

• Check Connections: Ensure the Voyager is correctly plugged into the audio source’s 3.5mm port and set the audio output to this port.

Got it

Need help

Start Over

< Back

For Next Time Use

1. When reconnecting to the Voyager, turn Bluetooth off on your phone or other previously paired devices.2. The transmitter auto-reconnects to the last-connected headphones. If not, select your previously paired device name shown on the screen and press the button once to connect manually. 3. Turn off the transmitter before using your headphones with another device.

Got it

Get Support

Start over

Start Over

< Back

Switch to Connect another Device

If need connect with another device, first, please disconnect the current device by pressing the button twice, then, hold and press the button to put the transmitter into pairing mode again, and press '+' or '-' to scroll up / down and connect with another device.

Got it

Get Support

Start over

Start Over

< Back

Turn Transmitter Auracast ON

Switch button to position. "Avantree Voyager" displayed on the screen means Auracast is on.

Auracast mode is On

Start Over

< Back

Plug into an audio source & play something

Note: If using with PC, and the PC is already plugged in with a Bluetooth dongle, pls set PC Sound output to "PC's headphone jack or speaker output.

Source is on & playing

Start Over

< Back

Connect Devices to the Voyager

1, Connection steps may vary by brand. Check your device’s manual for details. 2,Three common connection methods are as follows:

Direct Connection

With Phone Assistant

With APP Assistant

Start Over

< Back

Direct Connection

Some devices like Avantree HomeBuddy can connect with Voyager directly via Auracast. Keep Voyager and Avantree HomeBuddy close, turn the Avantree HomeBuddy on and switch to Auracast Mode. They'll connect automatically in 5-10 seconds (LED will turn Solid white on the Homebuddy).

Connected

Need help

Start Over

< Back

Check for sound

You should be able to hear audio through your headphones /speakers. If not, try adjusting the volume on the transmitter, audio source, or your headphones/speakers. Follow the same way to connect with more devices.

Good

Not working

Start Over

< Back

Connect with Phone Assistant

Some devices require a phone with Auracast Assistant function (eg., Galaxy S24 phone) to act as a bridge for connection. First, connect your device and phone via Bluetooth.

Bluetooth Connected

Need help

Start Over

< Back

Connect with Phone Assistant

Then, switch phone's Bluetooth connection to "LE Audio". Contact your phone's supplier for help if needed.

LE Audio Activated

Need help

Start Over

< Back

Select and Connect with "Avantree Voyager"

Note: The four-digit suffix in "Avantree Voyager" uniquely identifies its broadcast ID.

"Avantree Voyager" is broadcasting

Start Over

< Back

Connect with APP Assistant

Certain devices use their dedicated app to establish and manage the connection with the Auracast adapter. Let's take our Avantree app as an example: The Avantree app currently works with Avantree Infinity earbuds. More products will be supported soon.

Got it

Need help

Start Over

< Back

Connect via Avantree APP

Step 1: Connect your device with Phone via Bluetooth, and open the Avantree app on your phone.

OK

Need help

Start Over

< Back

Connect via Avantree APP

Step 2: Use the APP to connect your devices with "Avantree Voyager".

Note: The four-digit suffix in "Avantree Voyager" uniquely identifies its broadcast ID.

Connected

Need help

Start Over

< Back

Reach out to us for help!

You can email us directly at support@avantree.com, or click the button below to redirect to our support page. We'll get back to you within 1 business day!

Get support

Start Over

< Back

You're done!

We hope you enjoy your experience with the Voyager! If you ever need anything, please don't hesitate to reach out to us at support@avantree.com

Get tips on charging

Add FREE 24-month coverage!

Start Over

< Back

Charging the Transmitter

When the low battery icon appears on top right of the screen, please charge the transmitter. Plug the provided USB C charging cable into the charging port, then connect the other end to a 5V/500mA-2A rated USB adapter (your phone charger or similar should work) or PC USB port.
