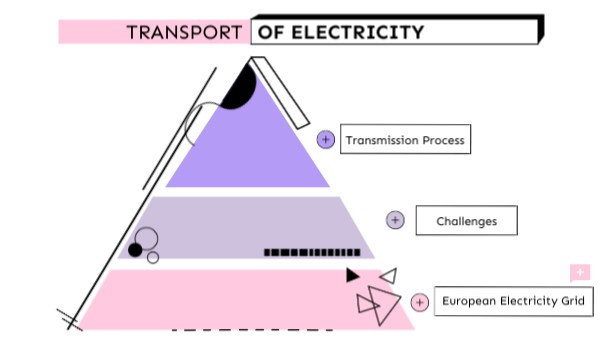

Pyramid Electricity

Transport

of electricity

Transmission Process

Challenges

European Electricity Grid

Power Consumption by Country

• Germany: ~500 TWh (largest consumer in the EU, driven by industrial sector demand).
• France: ~450 TWh (heavily reliant on nuclear power).
• Italy: ~300 TWh (high reliance on gas imports for power).
• United Kingdom: ~320 TWh (not in the EU but connected to the European grid).
• Spain: ~250 TWh (rapidly increasing renewable generation).
• Poland: ~170 TWh (mostly coal-dependent).

• Netherlands: ~120 TWh (diverse mix including gas, renewables).

• Sweden: ~140 TWh (hydropower and nuclear as primary sources).

3. Renewable Energy Integration:

• Renewable sources are often located far from urban centers (e.g., offshore wind farms, solar farms in remote sunny regions).
• Transmission infrastructure must be adapted to bring renewable energy to consumers and manage its variability (solar and wind generation fluctuate).

4. Grid Stability and Balancing:

• Maintaining consistent frequency (50Hz in Europe) across the grid requires constant balancing between supply and demand.
• Surges in demand or rapid changes in generation can destabilize the grid, leading to blackouts if not properly managed.

5. Cross-Border Coordination:

• In Europe, power flows across borders in the integrated grid, requiring coordination to manage demand and supply across national grids and prevent overloading

Challenges of Transmission

1. Energy Losses:

• Resistance in transmission lines causes energy losses, which are proportional to the square of the current.
• High-voltage transmission reduces current, thus limiting these losses, but some loss is inevitable, particularly over long distances.

2. Infrastructure and Maintenance:

• Maintaining the high-voltage infrastructure (lines, transformers) is costly and technically challenging, especially in remote or difficult terrains.
• Aging infrastructure in Europe and other regions requires regular upgrading to handle increasing power demands and integrate renewable sources.

European Overview

1. Structure of the European Grid:

• The European grid is a highly interconnected network where national grids are connected, allowing countries to import/export power as needed.
• This interconnectedness supports energy security but requires extensive coordination and infrastructure to balance supply and demand across borders.

2. Grid Reliability and Cross-Border Trade:

• Countries import/export power based on demand and production levels. For example, France often exports nuclear-generated electricity, while Germany imports during high demand periods.

3. Challenges in Cross-Border Flows:

• Differences in national grid policies, generation capacity, and renewable energy fluctuations create logistical and operational challenges for stable cross-border electricity flows.

3. High-Voltage Transmission:

• Electricity travels through high-voltage transmission lines across large distances in national or regional grids.
• High voltage minimizes energy loss (line losses) as resistance in the wires dissipates less power when voltage is high and current is lower.

4. Step-Down Transformation:

• Near the area of consumption, transformers reduce the voltage to safer, usable levels (e.g., 110V or 220V) for distribution in residential and commercial zones.

5. Distribution:

• Electricity reaches homes, businesses, and industries via local distribution networks.

Electricity Transmission Process

1. Power Generation:

• Electricity is generated in power plants (fossil fuel, nuclear, hydroelectric, solar, wind) at a high voltage, typically between 11-25 kilovolts (kV).
• Renewable sources (solar, wind) increasingly contribute to generation, though they face intermittency issues.

2. Step-Up Transformation:

• Power is stepped up to a much higher voltage (e.g., 132-765 kV) by transformers to reduce energy loss over long distances.
