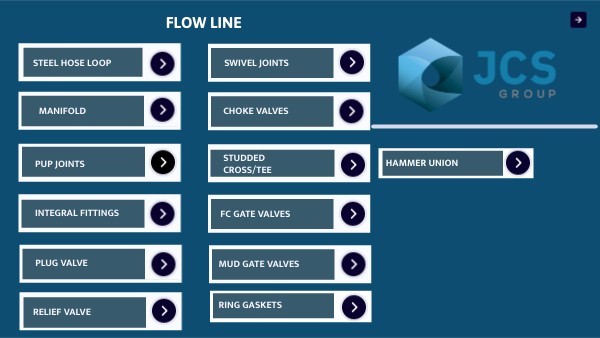

FLOW LINE
NEW PRODUCT LAUNCH
SWIVEL JOINTS
STEEL HOSE LOOP
MANIFOLD
CHOKE VALVES
TRASCH CATCH ER MANIFOLD
STUDDED CROSS/TEE
HAMMER UNION
CHECK VALVE
PUP JOINTS
INTEGRAL FITTINGS
TRASCH CATCHER
FC GATE VALVES
PLUG VALVE
MUD GATE VALVES
RING GASKETS
RELIEF VALVE
STEEL HOSE LOOP
10,000psi & 15,000psi Hose
6,000psi Hose
- Cementing Steel Hose Loops are available for 2" and 3" of nominal pipe sizes.
- Suitable for Cementing lines, Water lines, Well Testing Lines, etc.
- Cementing Steel Hose Loops are available for Standard and H2S Service.
- Long Radius Cementing Steel Hose Loops are suitable for Pressures up to 15,000psi.
- Short Radius Cementing Steel Hose Loops are suitable for Pressures up to 6,000psi.
- Styles of Cementing Steel Hose Loops are customized.
MANIFOLD
Manifold- 5 Vales and, 2 Adjustable Choke Valves
2 1/6'' Choke & Kill Manifold (10,000psi)
- Cement Manifolds.
- Choke Manifolds.
- Choke and Kill Manifolds.
- Flowback Manifolds.
- Well Testing Manifolds.
- Manifolds are designed and manufactured to meet customer’s requirements such as 4, 7, 8 or 9 Valve Manifold.
PUP JOINTS
4'' Fig 1502 2ft NPST
2'' Fig 1502 Integral
- Pup Joints are available for 2", 3" and 4" of nominal pipe sizes for CWP 15,000psi · 4".
- of nominal pipe size is available upon customer's request.
- 15,000psi for Standard Service, 10,000psi for H2S Service.
Each size can be changed as customer's requirements.
INTEGRAL FITTINGS
Tee
Cross
4'' Line Integral Fittings
Eldow
- Wide range of fittings from Elbows to Swages with integral 1502 union end.
- Standard CWP 15,000psi/TP 22,500psi and H2S service CWP 10,000psi/TP 15,000psi.
- Fittings are available 2", 3" and 4"nominal pipe sizes.
- All Fittings are available for Standard and H2S service.
PLUG VALVE
- Standard service is used up to 15,000psi and tested at 22,500psi.
- H2S service is used up to 10,000psi and tested at 15,000psi.
- Rugged Construction with Forged Alloy Steel Body.
- Reliable Performance at high working pressure.
- Bottom Entry design, Top Entry design, Easy Maintenance.
- Valve Parts are Interchangeable with most major designs.
- Suitable for variety of high pressure applications such as fracturing, cementing, acidizing and etc.
- Each valve is serialized.
- MTR and Test Report are available at any time.
- Fig 1002 / Fig 1502 both available for 4" plug Valve.
RELIEF VALVE
- Standard service is used up to 15,000psi and tested.
- H2S service is used up to 10,000psi and tested.
- Rugged Construction with Forged Alloy Steel Body.
- Reliable Performance at high working pressure.
- Each valve is serialized.
- MTR and Test Reports are available at any time.
- Pressure rating: available for custom order.
SWIVEL JOINTS
FOR MORE SWIVEL JOINTS INFORMATION GO TO NEXT PAGE
Size: 2", 3", 4" End Type : MxM, MxF Service: Standard (15,000psi), H2S(10,000psi)
SWIVEL JOINTS
FOR MORE SWIVEL JOINTS INFORMATION GO TO NEXT PAGE
Size: 2", 3", 4" End Type : MxM, MxF Service: Standard (15,000psi), H2S(10,000psi)
SWIVEL JOINTS
STYLE 10 MM(MF)
STYLE 20 MF(MM)
STYLE 30 MF
STYLE 50 MF
STYLE 60 MM(MF)
STYLE 80 MF
STYLE 100 MF(MM)
CHOKE VALVES
- 2" Fig 1502 MxF with 3/4" or 1" Orifice and 3" Fig 1502 MxF with 2" Orifice.
- Standard service is used up to 15,000psi and tested at 22,500psi.
- H2S service is used up to 10,000psi and tested at 15,000psi.
- Hammer Union End Connection.
- Forged alloy steel body, stainless steel and tungsten carbide parts.
- Parts are interchangeable with major brands.
- Suitable for a broad range of applications including wellheads, well testing, stream injection, choke and kill manifolds and well clean operations, etc.
Positive Choke Valve
Choke Valve 2'' 1502 Positive
Choke Valve 2'' 1502 adjustable
Choke Valve 3'' 1502 adjustable
STUDDED CROSS/TEE
FC GATE VALVES
<FC GATE VALVE
MUD GATE VALVES
MODEL DM GATE VALVES Models: DM Style Gate valves. Sizes: 2Inch, 4 Inch, and 5 Inch. Pressures: 2.000, 3.000, 5000 & 7500 psi. Service types: Standard, Sour gas, Cold Service and High Presure.
Temp. Rating: 20° F to 250° F. Connections: Threaded, Buttweld, Flanged and Union.
MODEL DM OVERVIEW DM series fits the bill for low cost valve operation. Made from high strength weldable alloys and corrosión resistant components, this wáter, oil and gas gate valve provides ease of in-line repairs. The DM valve is offered with working pressure ratings up to 7.500 PSI (517 BAR), with standard or sour gas trim options, and 90 durometer main seals.
- MODEL DM FEATURES & BENEFITS
- Extended Body stud thread engagement.
- Corrosion resistant gate and stem.
- High Strength Steel inserts.
- Tight fit tolerances.
- Working pressure ratings up to 7.500psi.
- Available with standard or sour gas trim.
RING GASKETS
Description: The R-Type ring gasket can be ordered to two different profiles, oval or octagonal in cross-sections. Both types have identical pitch diameter as the flange Groove they correspond to. These gaskets are used in pressures up to 5.000PSI. The octagonal type has a higher sealing coeffient tan the oval, therefore being the betler gasket of the two. The oval type is the only gasket that will fit a bottom.
RING GASKETS
Description: RX gaskets are designed for pressures up to 5.000 PSI. These gaskets are interchangeable with R-oval or R-octagonal rings used on API 6B flanges. RX type gaskets provide excellent performance in 6B flanged blowout preventer stacks, which require the additional mass of the RX gasket to support the higher pressure, higher vibrations and heavier weights of this type of equipment. Gaskets that have been torqued initiating a metal-to-metal seal should be discarded and not reused.
RING GASKETS
Description: Although similar in style to the octagonal gaskets, the BX Series can only be used with 6BX flanges and 16BX hubs. BX-Gaskets have been designed for hig-pressure ratings from 5.000lbs, to 20.000 lbs. Pitch diameter on BX Gaskets are slightly larger tan the pitch diameter of the flange. This forces the gasket to initially seal on its outside angles and secondly seal with its inside angles as the flange is bolted down to respective torque settings. The vent holeo n the BX series through the gasket helps equalize pressures caught between the flange grooves. Gaskets that have been torqued initiating a metal-to-metal seal should be discarded and not reused.
