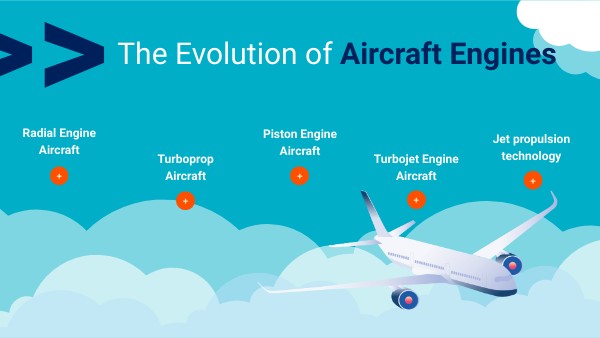

The Evolution of Aircraft Engines
Radial Engine Aircraft
Piston Engine Aircraft
Jet propulsion technology
Turbojet Engine Aircraft
Turboprop Aircraft
Turbojet engines
Turbojet engines were the first type of jet engines to be widely used in aircraft. They work by compressing incoming air, mixing it with fuel, combusting the mixture, and then expelling the hot exhaust gases through a nozzle to produce thrust. Early turbojet-powered aircraft include the German Messerschmitt Me 262 and the British Gloster Meteor, both of which saw service during World War II.
Jet propulsion technology
Jet propulsion technology involves the use of jet engines to produce thrust for aircraft propulsion. These engines work by drawing in air, compressing it, mixing it with fuel, combusting the mixture, and then expelling the hot exhaust gases through a nozzle at high speed to generate thrust. This technology revolutionized aviation by providing higher speeds, greater efficiency, and improved performance compared to traditional piston engines and propellers.
Turboprop engines
Turboprop engines are a combination of a gas turbine engine and a propeller. They use a gas turbine to drive a gearbox that turns a propeller. Turboprop engines are more fuel-efficient at lower speeds than turbojets, making them suitable for slower aircraft, such as regional airliners and military transport planes.
Radial engines
Radial engines were common on many World War II-era aircraft. These engines had cylinders arranged in a circular pattern around the crankshaft, and they were typically air-cooled. Radial engines were known for their reliability and were used on a wide variety of aircraft, including fighters, bombers, and transport planes.
Piston Engine Aircraft
Piston Engine Aircrafts were powered by internal combustion engines, similar to those found in cars, but optimized for flight. The engines drove propellers, which generated thrust by pushing air backward.
