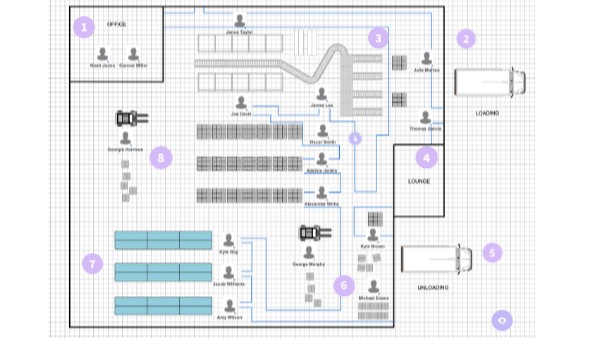

Warehouse diagram_Logistics

Karla Verónica Moheno Rubín de Celis

Created on May 13, 2024

Start designing with a free template

Discover more than 1500 professional designs like these:

Transcript

Administrative offices

The administrative offices of Volcán de Mi Tierra's warehouse are central to its operations, characterized by modern design elements and ergonomic workstations. Here, the administrative team oversees inventory, logistics, and other administrative functions with the aid of advanced technology. This space prioritizes productivity and collaboration, serving as the command center for the warehouse's efficient management.

Inventory area

In the inventory management section of our warehouse, products are systematically organized and stored on racks to facilitate efficient retrieval and monitoring. Here, each item is assigned a specific location and meticulously recorded in our inventory system. Our team monitors stock levels, ensuring accurate and up-to-date records of product quantities and locations. This approach enables us to optimize storage space, minimize inventory discrepancies, and fulfill customer orders with precision.

Maneuvering area for storage and handling equipment

In this area of the warehouse, material handling machines like forklifts and pallet jacks are used to move and organize inventory on storage racks. The space is designed to allow safe and efficient movement of machinery, with wide and clearly marked aisles around it so that the workers don't trespass it. Operators maneuver the machines with precision to ensure a steady flow of materials, optimizing time and minimizing the risk of accidents. In this area inventory is moved within the racks, from racks to the dispatch area, from the verification area to the racks, and more.

Unloading area

In the unloading area of our warehouse, incoming shipments are unloaded from trucks and received into our inventory. Just as in the loading area, our team adheres to safety measures and protocols. Here, incoming inventory is integrated into our warehouse operations, ensuring continuity in our supply chain and timely availability of products for further processing and distribution.

Receipt and verification area

In the warehouse's receipt and verification area, incoming shipments go through revision and documentation to ensure their accuracy and condition. This area operates with precision, meticulously cross-referencing each item against its accompanying paperwork to validate its quantity, quality, and specifications. Our team records all received goods, ensuring thorough documentation in alignment with purchase orders and invoices to secure the integrity of our inventory management.

Loading area

The loading area of the warehouse is where goods are prepared for shipment. It includes loading docks and equipment for moving items onto trucks.In the warehouse loading area, products are loaded onto trucks for transportation. Our team operates with precision and adherence to safety protocols, guaranteeing timely and secure handling of deliveries. Here, our products transition from our inventory to outbound shipments, facilitating the logistical flow of our operations.

Merchandise dispatches

In the merchandise dispatch section of our warehouse, we handle orders from start to finish. We carefully pick out each item, check it thoroughly, and pack it up securely for shipping. After that, we label and organize the packages so they're ready to go out. Our team makes sure everything is done right to guarantee that our shipments are on point and ready on time for loading.

Lounge

The warehouse lounge is a shared area where employees gather for breaks and informal interactions. It offers a range of amenities, including comfortable seating, refreshments like coffee, and access to Wi-Fi. This space encourages relaxation and fosters connections among team members, contributing to a balanced work atmosphere.
