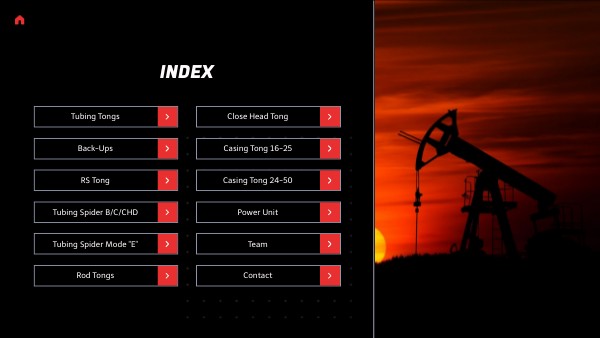

index

Tubing Tongs

Close Head Tong

Casing Tong 16-25

Back-Ups

RS Tong

Casing Tong 24-50

Tubing Spider B/C/CHD

Power Unit

Tubing Spider Mode "E"

Team

Rod Tongs

Contact

Motor Presentation

our story

WESTCO International Consulting, Inc. was founded in 1999 with the aim of meeting the rising demand for high-quality well servicing and workover equipment in North America. Today, we're proud to be a leading supplier of quality equipment and replacement parts worldwide, serving customers across continents such as South America, Europe, Africa, Asia, and Australia.

Gear Driven Tongs

Manuals

Westco Tubing Tongs are a fast, safe, and accurate gear driven tong for making up and breaking out 1.315” to 5-1/2” diameter tubing.

Features: • High Torque • Light Weight / Easy Handling • Safety Lock Front Guard • Low Maintenance Design • Proven Durability

BACK-UPS

SINGLE 5519XS-100

DOUBLE 4500ABD-100

MS MANUAL 45700

LT 55600-100

Pipe size Range: 1.05" to 6-1/8" (26.7 mm to 155.6mm) Weight: 400 lbs (181 kg)

Pipe size Range: 1.05" to 6-1/8" (26.7 mm to 155.6mm) Weight: 300 lbs (136.1 kg)

Pipe size Range: 1.05" to 6-1/8" (26.7 mm to 155.6mm) Weight: 150 lbs (68 kg)

Pipe size Range: 1.05" to 4-1 /2" (26.6 mm to 114.3 mm) Weight: 81 lbs (36.7 kg)

Manuals

Chain driven tongs

Manual

model rs-34891

The RS 34891-100 Chain-Driven tong is fast,safe, and accurate. For making up and breaking out 1.05” to 4.50” O.D. tubing. The Model RS achieves a make up torque of 4,650 lb-ft.

Features: • Safety lock Front Guard • Reinforced Steel Case Body • Desing Proven Durability • Traditional Chain Driven Design

Tubing Spiders

Manual

Westco Model’s B/C/CHD & CHD Snubbing Tubing Spider has been proven to be an excellent tool for safe, economical, and trouble free handling of tubular goods. The Models B/C/CHD offer both pneumatic and hydraulic operation mechanisms, and can handle a wide range of tubing sizes.

Features: • Robust and Long Lasting • Low Maintenance Design • Proven Durability

Manual

tubing spider

model "e"

Westco Model E Tubing Spider has been proven to be an excellent tool for the safe, economical, and trouble-free handling of tubular goods. The Model E offers both pneumatic and hydraulic operating mechanisms and can handle a wide range of tubing sizes.

Features: • Robust and long lasting • Low maintenance • Load Rating of up to 350,000 lbs.

rod tongs

Manual

Hydraulic Rod Tongs are fast, safe, and accurate gear driven tongs for making up and breaking out rods.

• Model M20 Provides high RPM & low torque for shallow to medium well depths. • Model M40 Provides medium RPM & torque for medium to deep well depths. • Models M50 & M75 Provide low RPM & high torque for cost-efficient operation.

closed head tong

Manual

model 58-93R

Westco Model 58-93R Closed Head Tong has been proven to be an excellent tool for the fast, safe, and trouble-free making up and breaking out of 1.313” to 6.063” O.D. tubing.

Features: • Traditional Chain-Drivern, Oil-Bath Lubrication System • Utilizes the Familiar Five-Jaw Carrier Gripping System • Includes Manual/Pneumatic Back-Up • Low Maintenance Design • Proven Durability

Options: Hydraulic Back-Up Torque Arm (Stiff Arm)

Casing tongs

Manual

model 16-25

16-25 Casing Tong is a fast, safe, and accurate gear driven tong for making up and breaking out 4” to 16 “ diameter casing. With a 32” handle, the tong can produce up to 25,000 lb-ft of torque.

Features: • High Torque • Light Weight / Easy Handling • Safety Interlock Door System • Low Maintenance • Design Proven Durability • 7 Point Contact Distribution

Casing tongs

Manual

model 24-50

24-50 Casing Tong is a fast, safe, and accurate gear driven tong for making up and breaking out 7” to 24“ diameter casing. With a 48” handle, the tong can produce up to 50,000 lb-ft of torque.

Features: • High Torque • Light Weight / Easy Handling • Safety Interlock Door System • Low Maintenance • Design Proven Durability • 9 Point Contact Distribution

Diesel power units

Manual

model HPU-6914

Westco Diesel Power Unit is designed exclusively for generating hydraulic power in order to drive tubing, casing, and drill pipe tongs.

Features: • Unit is capable of generation pressure up to 2,900 PSI • Power is provided by a DEUTZ air cooled, six cylinder diesel engine, type F6L 914. • At the designed operational speed of 2,300 rpm max., the engine has a power output of 113 hp (84 kW). • The engine is rigidly mounted on a heavy duty skid.

Options: • Electric Start (Standard) • Spring/Inertia Start • Pneumatic Start

Dimensions: Length : 96” (2,438.4 mm) Width : 48” (1,219.2 mm) Height : 56” (1,422.4 mm)

team

Our team at WESTCO International Consulting, Inc. has an impressive 100+ years of experience in manufacturing, assembling, testing, quality assurance, and consulting programs. Moreover, we have over 50 years of field and installation experience, ensuring that all materials supplied by us meet and exceed current industry standards. We take pride in our expertise and are committed to providing you with the best possible equipment and service to meet your needs.

contact

1360 North Olive Street, Ventura, Ca 93001

sales@westcointl.com

1(805)648-5004

www.westcointl.com

Download Manuals

45000 Tubing Tong Manual

55000 Tubing Tong Manual

56000 Tubing Tong Manual

56801-100Tubing Tong Manual

56802-100TK Tubing Tong Manual

57801-100 Tubing Tong Manual

57802-100TK Tubing Tong Manual

*Right click and 'Open link in new tab'

Download Manuals

-MS Back Up (See Tubing Tongs Manual)

-55600-LT Back-Up Manual

-55190XS-100 Back-Up Manual

-4500ABD-100 Back-Up Manual

**Right click and 'Open link in new tab'
