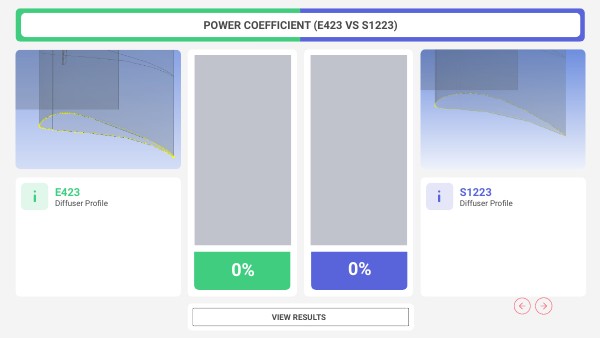

Power Coefficient (E423 VS S1223)

S1223

E423

Diffuser Profile

Diffuser Profile

0%

0%

VIEW RESULTS

Power Coefficient (E423 VS S1223)

S1223

E423

Diffuser Airfoil Profile

Diffuser Airfoil Profile

  • Length: 0.325 m
  • Angle : 13.5 Degrees
  • Re : 145,000
  • Length: 0.325 m
  • Angle : 13.5 Degrees
  • Re : 145,000

53.21%

53.09%

Next

total Drag (E423 VS s1223)

S1223

E423

Diffuser Airfoil Profile

Diffuser Airfoil Profile

  • Length: 0.325 m
  • Angle : 13.5 Degrees
  • Re : 145,000
  • Length: 0.325 m
  • Angle : 13.5 Degrees
  • Re : 145,000

65.273 N

67.648 N

Next

E423 Diffuser

Full Body Analysis

+ info

Full Body Analysis (E423 Diffuser)

2.26%

50.83%

53.09%

Decrease in Cp

W/ Pole

Pole N/A

Decrease in Cp

Cp (Pole VS Pole N/A)

2.26

Full Body Analysis (Drag)

Vehicle + Tower Drag = 8.1 NS1223 Diffuser Drag = 10.358 N E423 Diffuser Drag = 12.7 NTurbine Drag(w/ Diff) = 54.9 N
