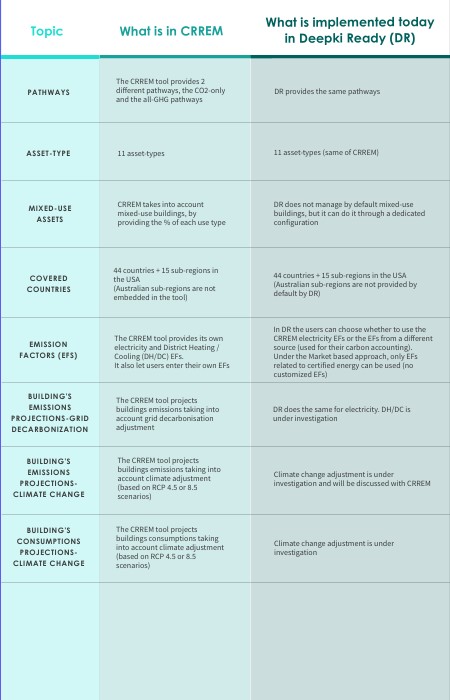

What is implemented today in Deepki Ready (DR)
What is in CRREM
Topic
The CRREM tool provides 2 different pathways, the CO2-only and the all-GHG pathways
DR provides the same pathways
Pathways
11 asset-types (same of CRREM)
Asset-type
11 asset-types
CRREM takes into account mixed-use buildings, by providing the % of each use type
DR does not manage by default mixed-use buildings, but it can do it through a dedicated configuration
Mixed-use assets
44 countries + 15 sub-regions in the USA(Australian sub-regions are not embedded in the tool)
44 countries + 15 sub-regions in the USA(Australian sub-regions are not provided by default by DR)
Covered countries
In DR the users can choose whether to use the CRREM electricity EFs or the EFs from a different source (used for their carbon accounting). Under the Market based approach, only EFs related to certified energy can be used (no customized EFs)
The CRREM tool provides its own electricity and District Heating / Cooling (DH/DC) EFs.It also let users enter their own EFs
Emission Factors (EFs)
Building's emissions projections-Grid Decarbonization
The CRREM tool projects buildings emissions taking into account grid decarbonisation adjustment
DR does the same for electricity. DH/DC is under investigation
The CRREM tool projects buildings emissions taking into account climate adjustment (based on RCP 4.5 or 8.5 scenarios)
Building's emissions projections-Climate Change
Climate change adjustment is under investigation and will be discussed with CRREM
The CRREM tool projects buildings consumptions taking into account climate adjustment (based on RCP 4.5 or 8.5 scenarios)
Building's consumptions projections- Climate Change
Climate change adjustment is under investigation
What is implemented today in Deepki Ready (DR)
Topic
What is in CRREM
Normalizations (occupancy and weather)
Normalizations are not standard features in DR but, if needed, consumptions can be normalized and showed in the corresponding graph
The CRREM tool allows users to select occupancy and weather normalization
DR estimates consumptions for missing months, using a detailed statistical approach (also considering climate variables). The methodology is different from CRREM
CRREM estimates consumptions when they are reported for less than 12 months
Gap-filling
Estimations (consumption not covering 100% of the asset’s area)
DR offers a standard and advanced estimation methodology that depends on the agreed level of service.
The CRREM tool always estimates for floor area missing consumption
DR offers an Investment Plan panel, which allows to select a list of detailed actions, with associated energy savings and costs to improve the building's energy and carbon efficiency. There is also a dedicated graph to keep track of the CAPEX
The CRREM tool has a dedicated section for retrofit actions (high level), and offers some graphs for the financial KPIs and the ecological break-even point using rough estimates.
Retrofitting/Investment Plan
Currently, DR follows by default the reporting approach (based on GHG Protocol) and does not deduct this kind of emissions. The Transition risk approach can be modeled in specific cases.
The CRREM tool deducts GHG emissions of renewable energy produced on-site and exported to the grid (Transition risk approach)
Carbon accounting methodology
The CRREM tool provides current and estimated energy and carbon costs and also derives the Carbon Value at Risk (CVaR).Some graphs are provided to show these KPIs.
Economic and financial KPIs
Currently, DR does not take into account carbon and energy costs, nor the CVaR, and the corresponding graphs are missing
The risk of stranding is shown in terms of number of buildings, floor area, and GAV, both as absolute figures and as a % of the whole portfolio
Results at the portfolio level
The risk of stranding is shown in terms of number of buildings, floor area and NAV, only as absolute figures
Filters at portfolio level
DR offers the same filters of CRREM.Other filters can be added according to project specifications
Applicable filters are: Country, Property type, Entity/Fund, Assessment year
What is implemented today in Deepki Ready (DR)
What is in CRREM
Topic
DR has a dynamic approach and uses the last available year as Base year
In the CRREM tool, users can choose for each building the base year (2020; 2021; 2022)
Choice of the Base year
At portfolio level, the CRREM tool allows users to select the year in which the asset will be sold to see how the stranding risk of the portfolio changes.
Currently not available in DR, but it will be added in a future release of the Investment Plan panel.
Asset Resale
DR offers an export feature to download an Excel file with the main results and KPIs (Energy and carbon pathways, List of stranded assets, List of investments)
CRREM provides the main results and KPIs within its Excel tool
Export
