PRogramming Sensors

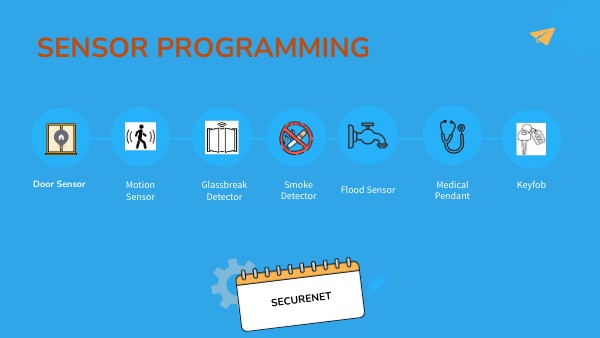

Sensor PRogramming

Smoke Detector

Medical Pendant

Door Sensor

Glassbreak Detector

Keyfob

Motion Sensor

Flood Sensor

Securenet

STEPS:Open the correct SecureNet accountExpand the Accounts Tab from the navigation bar on the left side of the screen Click Panel Settings Select the Doors / Windows Category Select a name for the sensor Enter the 7-Digit TXID in the Serial Field Select the Entry Delay (30 seconds is the default entry delay) Select Enabled for the Chime Field Select Enabled for the Voice Field Click Add Sensor

Step 1

Step 3

Step 4

Step 2

Click Add Door

Motion Sensor

Programming Steps

Step 5

Step 4

Step 1

Step 2

Step 3

Add Motion Sensor

Go to Panel Settings

Go to Mot ion Sensors

Put the Name and Serial Number

Open the correct SecureNet account

Glass Break Detector Programming Steps

NOTE: When adding sensors remotely it may take a few minutes for the panel to receive the requested change.

• Open the correct SecureNet account
• Expand the Accounts Tab from the navigation bar on the left side of the screen
• Click Panel Settings
• Select the Glass Breaks Category
• Select a name for the sensor
• Enter the 7-Digit TXID in the Serial Field
• Click Add Sensor

SMKT8-345 Programming via SecureNet

1. Open the correct SecureNet account
2. Expand the Accounts Tab from the navigation bar on the left side of the screen.
3. Click Panel Settings
4. Select the Smoke HFs Category
5. Select a name for the sensor
6. Enter the 7-Digit TXID in the Serial Field
7. Click Add Smoke / Heat / Freeze

Play

Medical Button Programming via SecureNet

Open Securenet

Copy the securenet i.d from Pando

Go to Panel Settings

Select Medicals

Click Add Medical after entering the details.

Enter the 7-Digit TXID in the Serial Field

Step 1

Open Securenet Account

Go to Panel Settings

Step 2

info

info

Click Add Remote

Step 5

info

Select Remotes Category

Step 3

Step 4

Enter the 7-Digit TXID in the Serial Field

info

info
