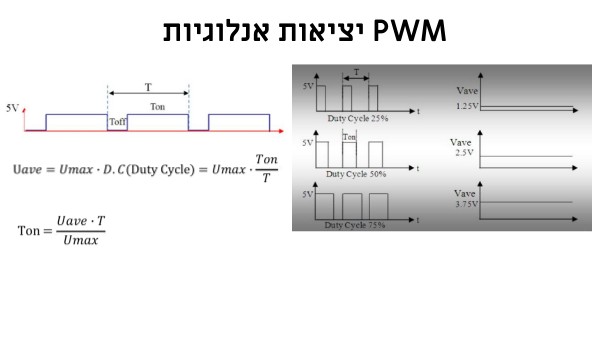

יציאות אנלוגיות PWM
RGB צבעי
RGB לד
Arduino סימולציה
ESP32 סימולציה
ESP32 ledc סימולציה
RGB קוד - לד
#define GREEN_LED 9
#define BLUE_LED 10
#define RED_LED 11
void setup()
{
pinMode(GREEN_LED, OUTPUT);
pinMode(BLUE_LED, OUTPUT);
pinMode(RED_LED, OUTPUT);
}
void loop()
{
rgb_color(0,0,255); //blue
delay(1000);
rgb_color(0,255,0); //green
delay(1000);
rgb_color(255,0,0); //red
delay(1000);
rgb_color(125,125,0); //yellow
delay(1000);
}
void rgb_color(int r, int g, int b)
{
analogWrite(RED_LED, r);
analogWrite(GREEN_LED, g);
analogWrite(BLUE_LED, b);
}
LED RGB analog
vicky.sigler
Created on November 5, 2022
