The carburetor is the device that is responsible for preparing the air-fuel mixture in gasoline engines. In order for the engine to run most economically and get the highest power output, it is important that the gasoline is mixed with the air in the optimum proportions.
The three fundamental pressure-sensing mechanisms used in aircraft instrument systems are the:
Bourdon tube
The diaphragm or bellows
The solid-state sensing device
Types of Pressure._ Pressure is a comparison between two forces.
Absolute pressure exists when a force is compared to a total vacuum, or absolutely no pressure.
The most common type of pressure measurement is gauge pressure. This is the difference between the pressure to be measured and the atmospheric pressure.
Standard pressure refers to an established or standard value that has been created for atmospheric pressure. This standard pressure value is 29.92 inches of mercury ("Hg), 1,013.2 hectopascal (hPa), or 14.7 psi.
A gyroscopic direction indicator is augmented by magnetic direction information from a remotely located compass. The type of compass used is called a flux valve or flux gate compass. It consists of a very magnetically permeable circular segmented core frame or spider. The earth’s magnetic field flows through this iron core and varies its distribution through segments of the core as the flux valve is rotated via the movement of the aircraft. Pickup coil windings are located on each of the core’s spider legs that are positioned 120° apart.
A device for finding direction with a needle that can move easily and that always points to magnetic north
CARBURATOR/ CARBURADOR
COMPASS/ BRÚJULA
The cylinders are the spaces through which the pistons of the engines move when propelled by the energy that is released in the combustion of air and fuel.
CYLINDER/ CILINDRO
MAGNETIC VARIATION/VARIACIÓN MAGNÉTICA
The difference in location between the earth´s magnetic poles.
A thermometer is an instrument that measures the temperature of a system quantitatively, and it helps to measure the temperature of the aircraft.
THERMOMETER/ TERMÓMETRO
A device containing a wheel that spins freely within a frame, used on aircraft and ships to help keep them horizontal, and as a children's toy
GYROSCOPE/ GIRÓSCOPO

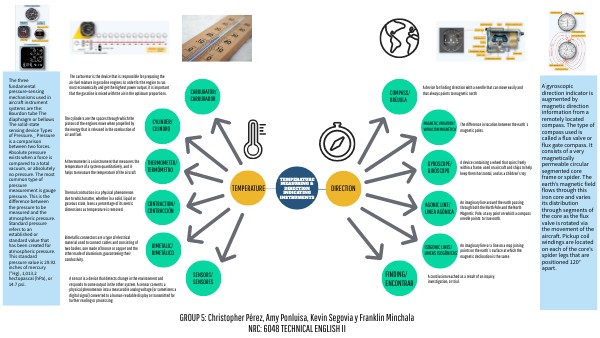

TEMPERATURE MEASURING & DIRECTION INDICATING INSTRUMENTS
TEMPERATURE
DIRECTION
Thermal contraction is a physical phenomenon due to which matter, whether in a solid, liquid or gaseous state, loses a percentage of its metric dimensions as temperature is removed.
An imaginary line around the earth passing through both the North Pole and the North Magnetic Pole, at any point on which a compass needle points to true north.
CONTRACTION/ CONTRACCIÓN
AGONIC LINE/LINEA AGÓNICA
Bimetallic connectors are a type of electrical material used to connect cables and consisting of two bodies, one made of bronze or copper and the other made of aluminium, guaranteeing their conductivity.
An imaginary line or a line on a map joining points on the earth´s surface at which the magnetic declination is the same.
BIMETALIC/BIMETÁLICO
ISOGONIC LINES/LINEAS ISOGÓNICAS
FINDING/ENCONTRAR
SENSORS/ SENSORES
A conclusion reached as a result of an inquiry, investigation, or trial.
A sensor is a device that detects change in the environment and responds to some output in the other system. A sensor converts a physical phenomenon into a measurable analog voltage (or sometimes a digital signal) converted to a human-readable display or transmitted for further reading or processing.
GROUP 5: Christopher Pérez, Amy Ponluisa, Kevin Segovia y Franklin Minchala NRC: 6048 TECHNICAL ENGLISH II
