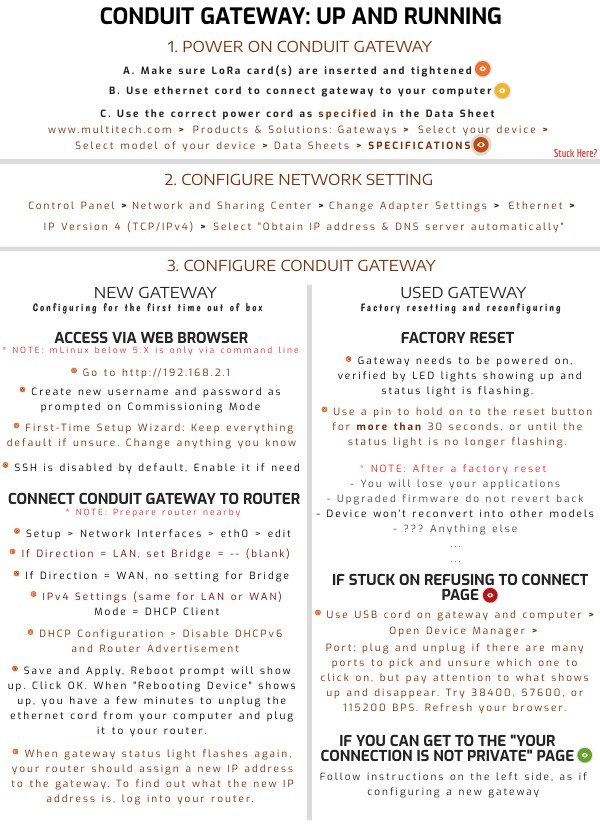

CONDUIT GATEWAY: UP AND RUNNING

1. Power ON CONDUIT gateway

A. Make sure LoRa card(s) are inserted and tightened

B. Use ethernet cord to connect gateway to your computer

C. Use the correct power cord as specified in the Data Sheet

www.multitech.com >

Products & Solutions: Gateways >

Select your device >

Select model of your device >

Data Sheets >

SPECIFICATIONS

Stuck Here?

2. CONFIGURE NETWORK SETTING

Ethernet >

Network and Sharing Center >

Change Adapter Settings >

Control Panel >

Select "Obtain IP address & DNS server automatically"

IP Version 4 (TCP/IPv4) >

3. CONFIGURE CONDUIT GATEWAY

used gateway

New Gateway

Factory resetting and reconfiguring

Configuring for the first time out of box

factory reset

Access via web browser

* NOTE: mLinux below 5.X is only via command line

* Gateway needs to be powered on, verified by LED lights showing up and status light is flashing.

* Go to http://192.168.2.1

* Create new username and password as prompted on Commissioning Mode

* Use a pin to hold on to the reset button for more than 30 seconds, or until the status light is no longer flashing.

* First-Time Setup Wizard: Keep everything default if unsure. Change anything you know

* SSH is disabled by default, Enable it if need

* NOTE: After a factory reset - You will lose your applications- Upgraded firmware do not revert back - Device won't reconvert into other models - ??? Anything else ... ...

Connect Conduit gateway to router

* NOTE: Prepare router nearby

* Setup > Network Interfaces > eth0 > edit

* If Direction = LAN, set Bridge = -- (blank)

* If Direction = WAN, no setting for Bridge

If stuck on refusing to connect page

* IPv4 Settings (same for LAN or WAN)Mode = DHCP Client

* Use USB cord on gateway and computer >

Open Device Manager >

* DHCP Configuration > Disable DHCPv6 and Router Advertisement

Port: plug and unplug if there are many ports to pick and unsure which one to click on, but pay attention to what shows up and disappear. Try 38400, 57600, or 115200 BPS. Refresh your browser.

* Save and Apply, Reboot prompt will show up. Click OK. When "Rebooting Device" shows up, you have a few minutes to unplug the ethernet cord from your computer and plug it to your router.

If you can get to the "Your connection is not private" page

* When gateway status light flashes again, your router should assign a new IP address to the gateway. To find out what the new IP address is, log into your router.

Follow instructions on the left side, as if configuring a new gateway
