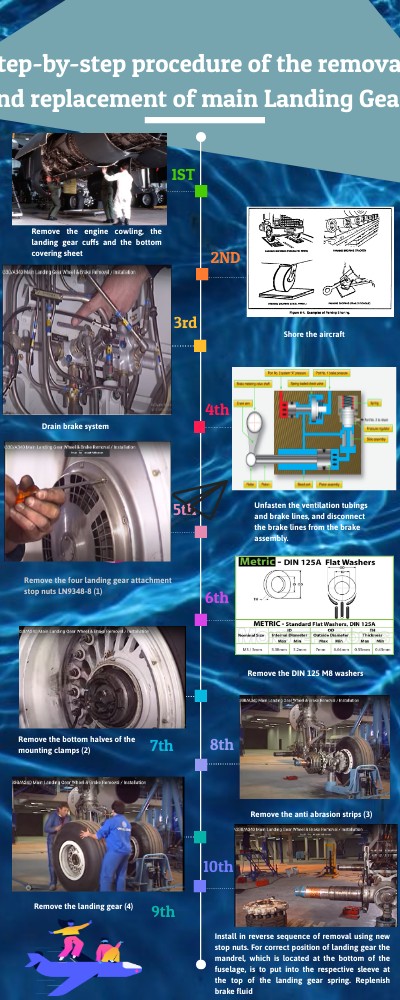

Step-by-step procedure of the removal and replacement of main Landing Gear
1ST
Remove the engine cowling, the landing gear cuffs and the bottom covering sheet
2ND
3rd
Shore the aircraft
4th
Drain brake system
5th
Unfasten the ventilation tubings and brake lines, and disconnect the brake lines from the brake assembly.
Remove the four landing gear attachment stop nuts LN9348-8 (1)
6th
Remove the DIN 125 M8 washers
8th
Remove the bottom halves of the mounting clamps (2)
7th
Remove the anti abrasion strips (3)
10th
9th
Remove the landing gear (4)
Install in reverse sequence of removal using new stop nuts. For correct position of landing gear the mandrel, which is located at the bottom of the fuselage, is to put into the respective sleeve at the top of the landing gear spring. Replenish brake fluid
