The Inverter test

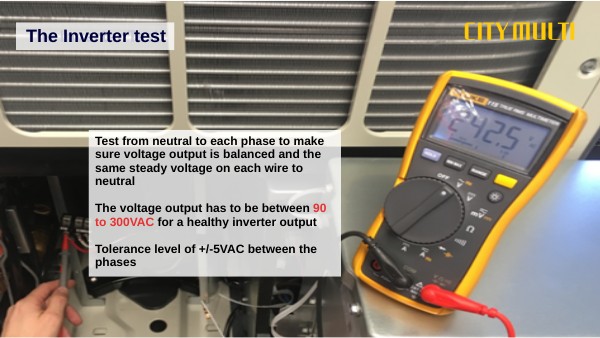

Test from neutral to each phase to make sure voltage output is balanced and the same steady voltage on each wire to neutral The voltage output has to be between 90 to 300VAC for a healthy inverter output Tolerance level of +/-5VAC between the phases
The Inverter test
Alternatively you can check the inverter voltages from phase to phase This will prove that the all 3 wires are outputting a balanced voltage
Correct voltage range is 90 - 300VAC
The Inverter test
If the inverter is faulty you will usually find one of the phases has a different voltage from the other two For example: Phase 1 to neutral = 185VAC Phase 2 to neutral = 185VAC Phase 3 to neutral = 33VAC Alternatively you may find that all three voltages are below 90VAC
The Inverter test
