M-Net Controller Addressing

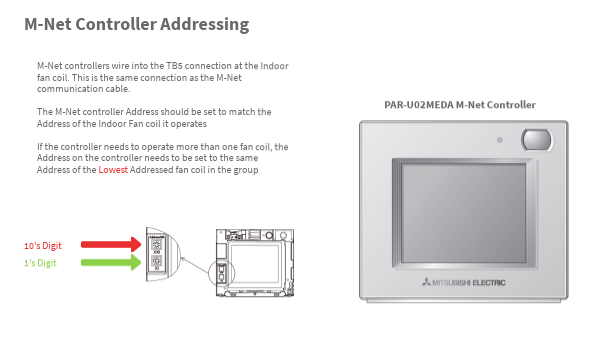

M-Net Controller Addressing

M-Net controllers wire into the TB5 connection at the Indoor fan coil. This is the same connection as the M-Net communication cable. The M-Net controller Address should be set to match the Address of the Indoor Fan coil it operates If the controller needs to operate more than one fan coil, the Address on the controller needs to be set to the same Address of the Lowest Addressed fan coil in the group

PAR-U02MEDA M-Net Controller

10's Digit

1's Digit

Addrressing Example

First Indoor unit address 001, therefore, Main Outdoor 051Sub Outdoor 052 and Main BC Box 053 Indoor addresses 001 to 004 on the Main Box First indoor on the Sub BC Box is 005, therefore, Sub BC Box address 055 M-Net controller for Indoor units 001, 002 and 003 addressed 101 M-Net controller 104 for Indoor 004 M-Net controller 105 to control Indoor units 005 and 006 M-Net Controller 107 controlling Indoor unit 007

052

051

002

001

003

004

053

101

104

007

006

005

055

107

105
