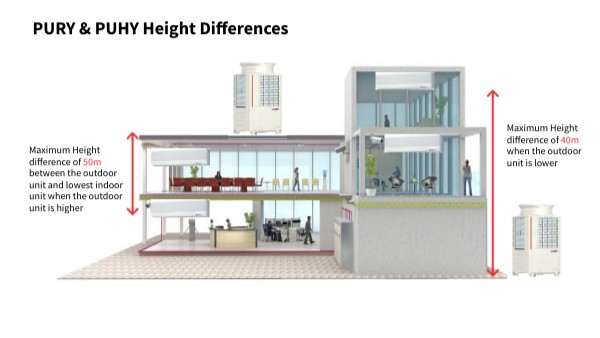

PURY & PUHY Height Differences

Maximum Height difference of 40m when the outdoor unit is lower

Maximum Height difference of 50m between the outdoor unit and lowest indoor unit when the outdoor unit is higher

PURY & PUHY Height Differences

Maximum Height difference between Outdoor unit and furthest Indoor unit when the Outdoor is higher 50m. 40m maximum height difference when the Outdoor unit is Lower than the Indoors

40/50m

PUMY Height Differences

H1 - Maximum Height difference between the Outdoor Unit and Highest Indoor unit is 40m (If the Outdoor Unit is Higher than the Indoor 50m)

H2 - Maximum Height difference between the Lowest and Highest Indoor Fan Coil is 15m

H1

H2
